  6. Straight Blade Receptacle, 18-60R, 60 A, 120/208V AC, 4 Pole, 4 Wire, Flush Mount, Non-Grounded

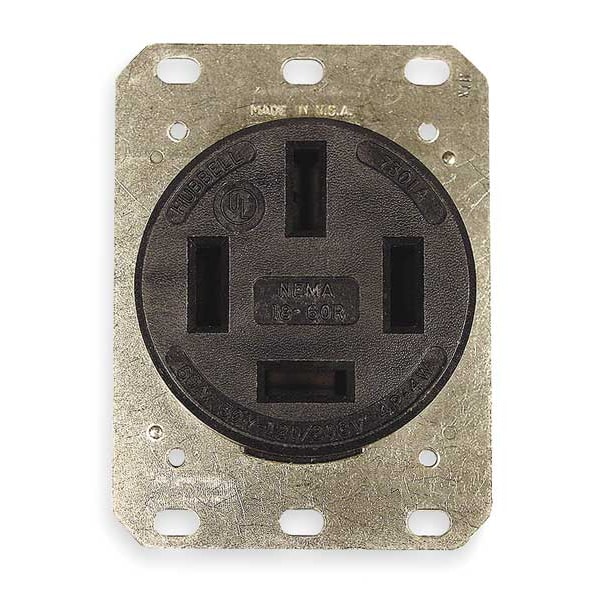

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 18-60R, 60 A, 120/208V AC, 4 Pole, 4 Wire, Flush Mount, Non-Grounded HBL7301A - main

Straight Blade Receptacle, 18-60R, 60 A, 120/208V AC, 4 Pole, 4 Wire, Flush Mount, Non-Grounded

  • Mfr # HBL7301A

  • Zoro # G0580806

product price:  $141.75
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
18-60R
Current Rating
60 A
Voltage Rating
120/208V AC
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7301A
Zoro #
G0580806
UPC #
783585015095
Country of Origin
United States

Dimensions

Width
1.81 in
Mount Hole Center-to-Center Height
3.3 in
Face Diameter
2.4 in
Minimum Wire Size
12 AWG
Overall Depth
2.4 in
Maximum Wire Size
4 AWG
Display Size
Standard Sized Product
Wire Size
#12 AWG to #4 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
18-60R
Current Rating
60 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL E2186
Resistance Properties
WR Rating
Flange Type
Non-Flanged
Number of Gangs
1
Application Environment
Industrial
NEMA Receptacle Configuration - Plugs and Receptacles
18-60R
NEMA Configuration
18-60
Corrosion Resistant
No
Power Indicator
No
HP
7 1/2 hp
Outlet Type
Single
Boot Code
D
Tamper Resistant
No
Voltage
120/208VAC
Outlet Type - Plugs and Receptacles
Single
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Material
Reinforced Thermoplastic Polyester/Glass Reinforced PET
Sub-Category
Single Receptacles
Weather Resistant - Plugs and Receptacles
No
Additional Electrical Protection
Standard Protection
Connection Orientation
Straight
Housing Material
Thermoplastic
Contact Material
Brass
NEMA Enclosure Rating
1
Horsepower Rating
7 1/2 hp
Wire Connection Types
Screw Terminals
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
HB
Market
Industrial
Cover Type
No Cover
Key Resistance Properties
Standard Resistance
Surge Protection
No
GFCI
No
Number of Poles & Wires
4 Pole / 4 Wire
Includes
Weatherproof Cover
Shrouded
No
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Polarized
Yes
Certification
UL Listed, File E2186, Listed to UL Standard 498
Mounting Strap Material
.062" (1.5) Plated Steel
Power Contacts Material
.040" (1.0) Brass
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Style
Single
Base Material
Glass Reinforced PET
Top Material
RTP
Rating
60A, 3ph 120/208VACV
Box Terminals Material
Copper
Device Color
Black
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screw Material
Steel-Zinc Plated
Terminal Screw Material
3/8" Allen Head, Plated Steel
Horsepower
7.5
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
4 Pole, 4 Wire Non-Grounding
Face Style
Finder Groove
Receptacle Grade
Heavy Duty Spec Grade
Standard
NEMA
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Flammability
UL 94 HB, UL 94 V0.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
IP Suitability
IP20
Wattage
12480 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
18-60R
Industry Standard(s)
CSA Certified NEMA® WD-6 Compliant UL Listed File E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
7.5

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 60 A, GFCI No, Grounding Non-Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 18-60R, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
