  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

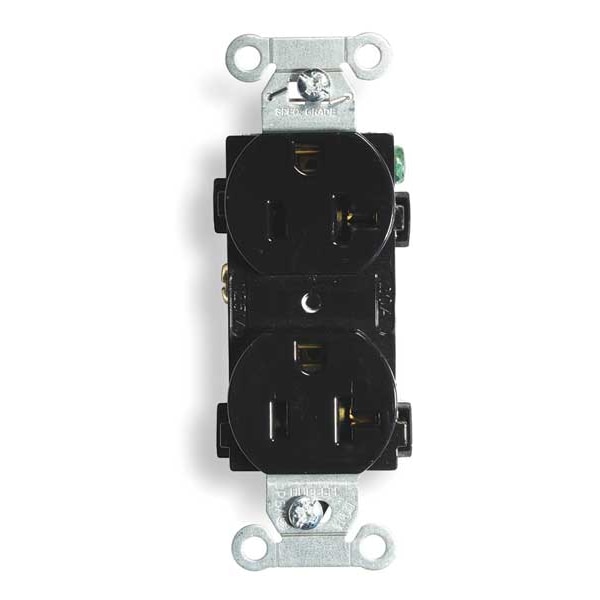

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20BLKWR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20BLKWR

  • Zoro # G1699345

product price: $7.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20BLKWR
Zoro #
G1699345
UPC #
783585144634
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Height
3.28 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Width
1.06 in
Length
1.32 in
Dimensions
1.32 in x 1.06 in x 3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Application Environment
Commercial
Outlet Type
Duplex
Corrosion Resistant
No
Tamper Resistant
No
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
Yes
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Surge Suppression
No
Power Indicator
No
HP
1 hp
Wiring Method
Back, Side
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
Yes
Material
Nylon
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Type
Duplex
Cover Type
No Cover
AFCI
No
Housing Material
Nylon
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Polarized
Yes
Horsepower Rating
1 hp
Shrouded
No
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
GFCI
No
Surge Protection
No
Auto Ground Clip Material
Stainless Steel
Base Material
Nylon
Standard
NEMA
Top Material
Nylon
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Poles and Wires
2 Pole, 3-Wire Grounding
Dielectric Voltage
Withstands 2,000V minimum
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
20A, 125V
Device Color
Black
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Style
Duplex
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Face Shape
Traditional
Horsepower
1
Power Contacts Material
.030" (.8) Brass
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Flammability
UL 94 V-2
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screw Material
Steel-Zinc Plated
Style
Smooth Face
Horsepower - Maximum
1
Environmental Conditions
Weather Resistant
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Series
Commercial Specification Grade
Nema Rating
5-20R
Wattage
2500 W
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Commercial Specification Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
