  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

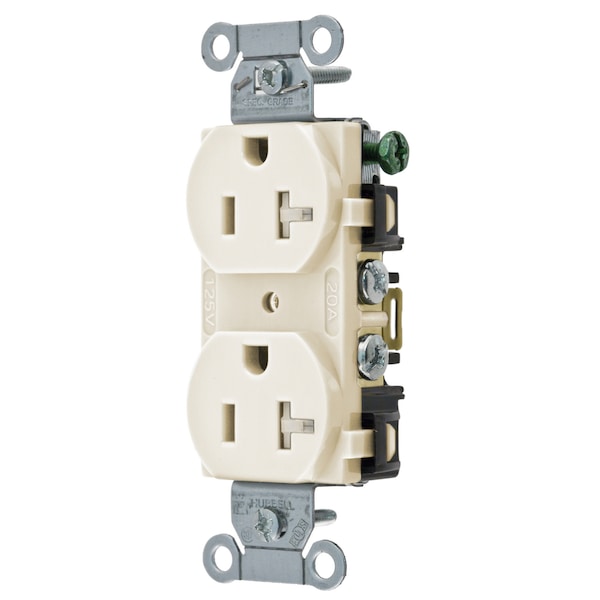

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20LATR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20LATR

  • Zoro # G500702449

product price: $9.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20LATR
Zoro #
G500702449
UPC #
783585144177
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Standard
NEMA
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Current Interrupting
Certified for current interrupting at full rated current
Horsepower
1
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
20A, 125V
Top Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Auto Ground Clip Material
Stainless Steel
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Product Type
Flush-receptacles
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Flammability
UL 94 V-2
Device Color
Light Almond
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Nylon
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Style
Duplex

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-WireGrounding, 20A 125V, 5-20R, Light Almond, Single Pack
