  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

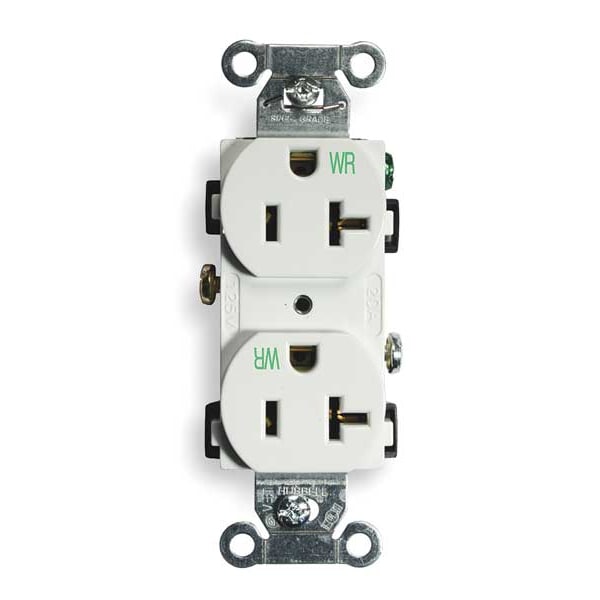

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20WHIWR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20WHIWR

  • Zoro # G1356783

product price:  $6.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20WHIWR
Zoro #
G1356783
UPC #
783585144665
Country of Origin
China

Dimensions

Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Wire Size
#12 AWG to #10 AWG
Height
3.28 in
Length
1.32 in
Display Size
Standard Sized Product
Width
1.06 in
Dimensions
1.32 in x 1.06 in x 3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
Application Environment
Commercial
Sub-Category
Duplex Receptacles
Power Indicator
No
Corrosion Resistant
No
Surge Suppression
No
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
NEMA Configuration
5-20
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
Yes
Weather Resistant
Yes
Tamper Resistant
No
Material
Nylon
Outlet Type
Duplex
Type
Duplex
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
AFCI
No
GFCI
No
Polarized
Yes
Cover Type
No Cover
Housing Material
Nylon
Surge Protection
No
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Shrouded
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Grade
Federal Specification
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Top Material
Nylon
Horsepower
1
Flammability
UL 94 V2.
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Strap Material
.040" (1) Steel (Galvanized)
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Rating
20A, 125V
Face Shape
Traditional
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Base Material
Nylon
Power Contacts Material
.030" (.8) Brass
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Style
Duplex
Auto Ground Clip Material
Stainless Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
White
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Style
Smooth Face
Environmental Conditions
Weather Resistant
Material - Mounting Hardware
Screw Mounting
Wattage
2500 W
Application
Commercial Specification Grade
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
5-20R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
