  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

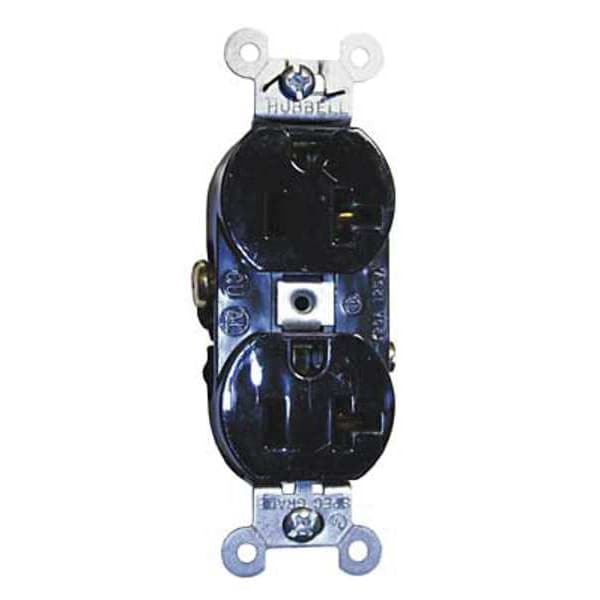

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR20BLK - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR20BLK

  • Zoro # G0588777

product price: $3.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20BLK
Zoro #
G0588777
UPC #
783585900193
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Overall Depth
3.3 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Length
1.32 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Width
0.83 in
Height
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-20
Surge Suppression
No
Mounting Type
Flush
Outlet Type
Duplex
Corrosion Resistant
No
Tamper Resistant
No
HP
1 hp
Number of Gangs
1
Sub-Category
Duplex Receptacles
Material
Nylon
Power Indicator
No
Weather Resistant
No
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
Type
Duplex
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Surge Protection
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Grade
Federal Specification
Housing Material
Nylon
Market
Commercial
Cover Type
No Cover
Shrouded
No
Contact Material
Brass
For Location
Indoor
Polarized
Yes
AFCI
No
Terminal Screw Material
#8-32 Brass, Multiple Drive
Receptacle Grade
Commercial Series Specification Grade
Mounting Screw Material
Steel-Zinc Plated
Mounting Strap Material
.040" (1) Steel (Galvanized)
Horsepower
1
Poles and Wires
2 Pole, 3-Wire Grounding
Face Style
Smooth Face
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Current Interrupting
Certified for current interrupting at full rated current
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Device Color
Black
Receptacle Style
Duplex
Flammability
UL 94 V-2
Base Material
Nylon
Face Shape
Traditional
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Top Material
Nylon
Power Contacts Material
.031" (.8) Phosphor Bronze
Rating
20A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Auto Ground Clip Material
.032" (.8) Steel Wire
Wattage
2500 W
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Series
Commercial Specification Grade
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Nema Rating
5-20R
Application
Commercial Specification Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
