- Item

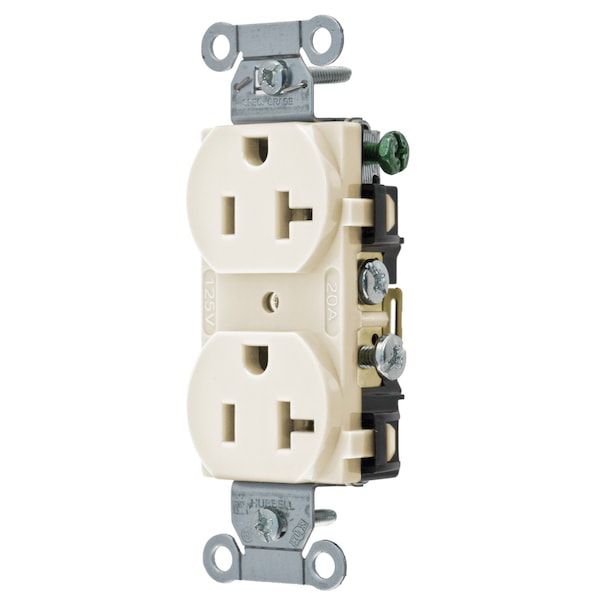

- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Side
- Grounding
- Grounded
- Housing Color
- Light Almond
- Mount Type
- Flush
- Standards
- C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
- Flange Type
- Non-Flanged
- Material
- Nylon
- Application
- Commercial Specification Grade
- Receptacle Style
- Duplex
- Face Style
- Smooth Face
- Standard
- NEMA
- Flammability
- UL 94 V-2
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Mounting Strap Material
- .040" (1) Steel (Galvanized)
- Mounting Screw Material
- Steel-Zinc Plated
- Top Material
- Nylon
- Rating
- 20A, 125V
- Device Color
- Light Almond
- Poles and Wires
- 2 Pole, 3-Wire Grounding
- Terminal Screw Material
- #8-32 Brass, Multiple Drive
- Product Type
- Flush-receptacles
- Receptacle Grade
- Commercial Series Specification Grade
- Terminal Accommodation
- #12-#10 AWG copper stranded or solid conductor only
- Certification
- UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
- Auto Ground Clip Material
- .032" (.8) Steel Wire
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Face Shape
- Traditional
- Horsepower
- 1
- Power Contacts Material
- .031" (.8) Phosphor Bronze
- Base Material
- Nylon
- Current Interrupting
- Certified for current interrupting at full rated current
- Other Available Colors
- Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Dielectric Voltage
- Withstands 2,000V minimum
- Ground Screw Material
- #8-32 Brass, Multiple Drive (Green)
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42
Fed. Spec. W-C-596
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Series
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number Of Wires
- 3-Wire
- Wattage
- 2500 W
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Style
- Smooth Face
- Dielectric Strength
- Withstands 2,000V minimum
- Horsepower - Maximum
- 1
- Material - Mounting Hardware
- Screw Mounting
