  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

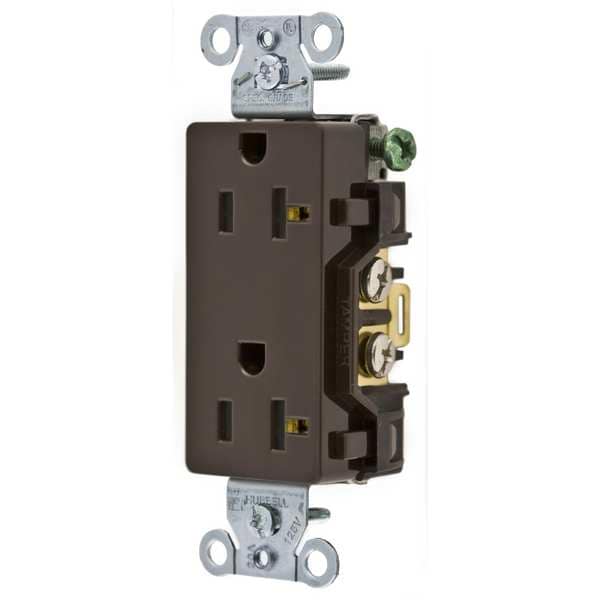

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20

  • Zoro # G0506177

product price: $7.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20
Zoro #
G0506177
UPC #
783585127866
Country of Origin
China

Dimensions

Minimum Wire Size
12 AWG
Overall Depth
1.3 in
Mount Hole Center-to-Center Width
1.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Voltage
125VAC
Outlet Type
Decorator
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Power Indicator
No
Material
Nylon
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Mounting Type
Flush
Type
Duplex
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Grade
Federal Specification
AFCI
No
Market
Commercial, Industrial
Horsepower Rating
1 hp
Cover Type
No Cover
For Location
Indoor
UL 94 Flammability Rating
V-2
Polarized
Yes
Surge Protection
No
Shrouded
No
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
1
Housing Material
Nylon
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Current Interrupting
Certified for current interrupting at full rated current
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Horsepower
1
Face Style
Smooth Face
Rating
20A, 125V
Face Shape
Decorator
Mounting Screw Material
Steel-Zinc Plated
Dielectric Voltage
Withstands 2,000V minimum
Terminal Screw Material
#8-32 Brass, Multiple Drive
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Standard
NEMA
Ground Screw Material
#8-32 Brass, Multiple Drive
Mounting Strap Material
.040" (1) Steel (Galvanized)
Power Contacts Material
.030" (.8) Brass
Device Color
Brown
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Poles and Wires
2 Pole, 3-Wire Grounding
Top Material
Nylon
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Base Material
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Flammability
UL 94 V2.
Auto Ground Clip Material
Stainless Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
