  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

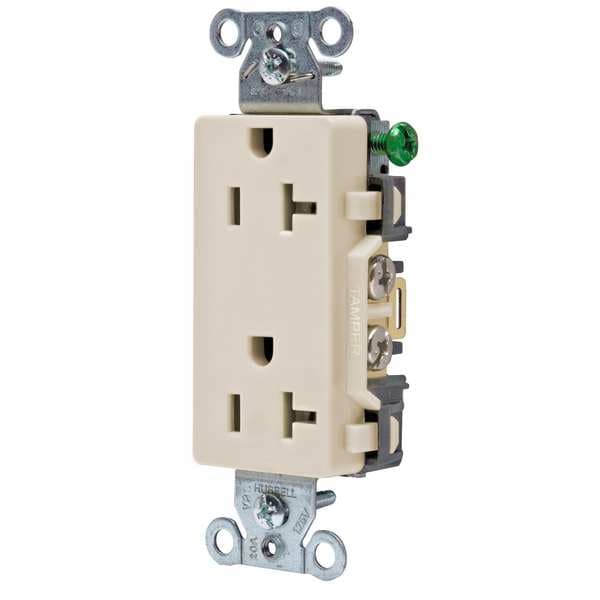

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20LA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20LA

  • Zoro # G2427476

product price: $7.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20LA
Zoro #
G2427476
UPC #
783585127934
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
2.7 in
Mount Hole Center-to-Center Width
1.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.3 in
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
Number of Gangs
1
Surge Suppression
No
Power Indicator
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Voltage
125VAC
Application Environment
Commercial
HP
1 hp
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-20
Material
Nylon
Mounting Type
Flush
Tamper Resistant
No
Weather Resistant
No
Outlet Type
Decorator
Type
Duplex Style Line
Market
Commercial, Industrial
Housing Material
Nylon
For Location
Indoor
Connection Orientation
Straight
NEMA Enclosure Rating
1
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
UL 94 Flammability Rating
V-2
Contact Material
Brass
GFCI
No
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Includes Mounting Hardware
Yes
Shrouded
No
Cover Type
No Cover
Horsepower Rating
1 hp
Surge Protection
No
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Terminal Screw Material
#8-32 Brass, Multiple Drive
Top Material
Nylon
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Screw Material
Steel-Zinc Plated
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
1
Mounting Strap Material
.040" (1) Steel (Galvanized)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Decorator
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Face Style
Smooth Face
Flammability
UL 94 V-2
Device Color
Light Almond
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Auto Ground Clip Material
Stainless Steel
Current Interrupting
Certified for current interrupting at full rated current
Ground Screw Material
#8-32 Brass, Multiple Drive
Standard
NEMA
Dielectric Voltage
Withstands 2,000V minimum
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Power Contacts Material
.030" (.8) Brass
Base Material
Nylon
Rating
20A, 125V

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Light Almond, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
