  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

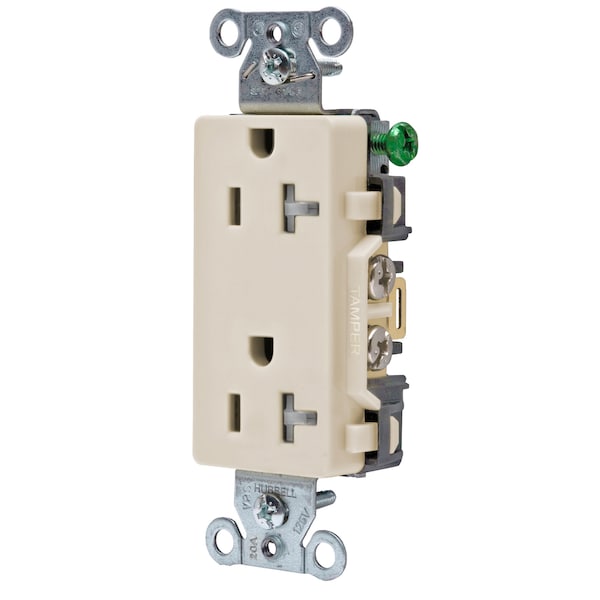

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20LATR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20LATR

  • Zoro # G500701800

product price:  $12.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20LATR
Zoro #
G500701800
UPC #
783585144450
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper Resistant
Mounting Strap Material
.040" (1) Steel (Galvanized)
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V-2
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.030" (.8) Brass
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Rating
20A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Face Shape
Decorator
Top Material
Nylon
Terminal Screw Material
#8-32 Brass, Multiple Drive
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Ground Screw Material
#8-32 Brass, Multiple Drive
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Device Color
Light Almond
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
1
Product Type
Flush-receptacles
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Smooth Face
Base Material
Nylon

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack
