  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

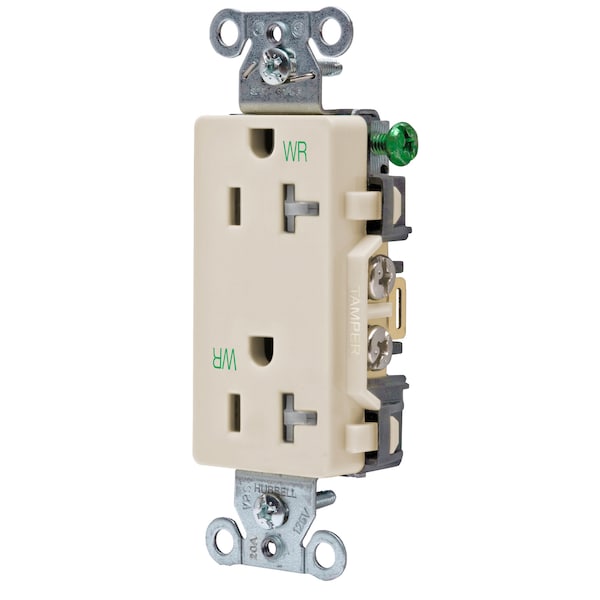

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20LAWRTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20LAWRTR

  • Zoro # G600701823

product price:  $15.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20LAWRTR
Zoro #
G600701823
UPC #
783585144870
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Steel-Zinc Plated
Ground Screw Material
#8-32 Brass, Multiple Drive
Top Material
Nylon
Product Type
Flush-receptacles
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant
Power Contacts Material
.030" (.8) Brass
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Mounting Strap Material
.040" (1) Steel (Galvanized)
Standard
NEMA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Face Style
Smooth Face
Flammability
UL 94 V-2
Horsepower
1
Base Material
Nylon
Rating
20A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Light Almond
Face Shape
Decorator
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screw Material
#8-32 Brass, Multiple Drive
Auto Ground Clip Material
Stainless Steel

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper and Weather-Resistant Duplex, Decorator/Commercial/IndustrialGrade, 2-Pole 3-Wire Grounding, 20A125V, 5-20R, White, Single Pack
