  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

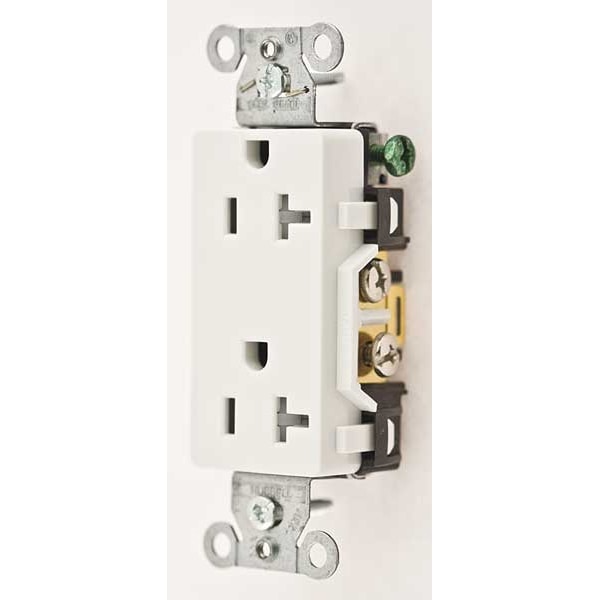

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20WHITR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20WHITR

  • Zoro # G3367646

product price: $11.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20WHITR
Zoro #
G3367646
UPC #
783585144443
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
2.7 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Width
1.3 in
Overall Depth
1.3 in
Minimum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon
Power Indicator
No
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
NEMA Configuration
5-20
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Decorator Duplex
Outlet Type
Decorator
HP
1 hp
Number of Gangs
1
Surge Suppression
No
Weather Resistant
No
Tamper Resistant
Yes
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Type
Duplex
Cover Type
No Cover
AFCI
No
Contact Material
Brass
Surge Protection
No
UL 94 Flammability Rating
V-2
Shrouded
No
Market
Commercial, Industrial
Polarized
Yes
Horsepower Rating
1 hp
For Location
Indoor
NEMA Enclosure Rating
1
Housing Material
Nylon
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Grade
Federal Specification
GFCI
No
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper Resistant
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Mounting Screw Material
Steel-Zinc Plated
Base Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Power Contacts Material
.030" (.8) Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
1
Flammability
UL 94 V-2
Terminal Screw Material
#8-32 Brass, Multiple Drive
Device Color
White
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Top Material
Nylon
Face Style
Smooth Face
Auto Ground Clip Material
Stainless Steel
Face Shape
Decorator
Rating
20A, 125V

Description

• Tamper-resistant shutter complies with national electrical code requirements
• Aesthetic Style Line® decorator design
• Smooth face
• Triple wipe contacts
