  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

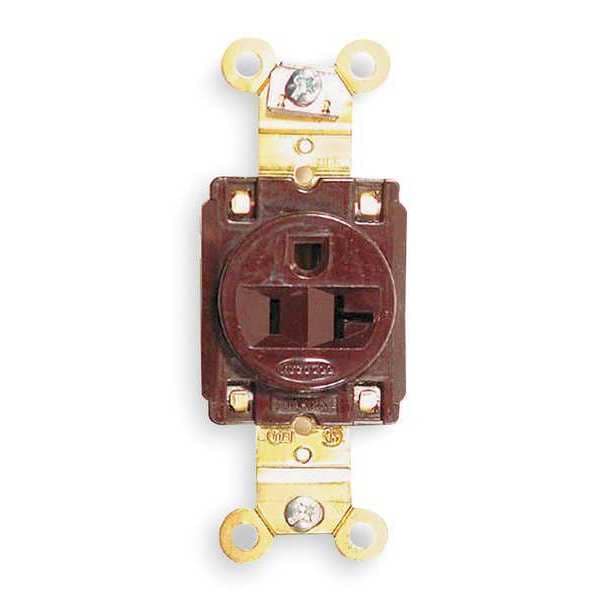

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5361 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5361

  • Zoro # G1781543

product price: $27.81
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5361
Zoro #
G1781543
UPC #
783585013909
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Face Plate Height
1.9 in
Face Plate Width
1.6 in
Overall Depth
1.2 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Power Indicator
No
Weather Resistant
No
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Single
Application Environment
Harsh and Heavy Use Industrial
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Single
Corrosion Resistant
No
Material
Nylon/Reinforced PET
Mounting Type
Flush
Sub-Category
Single Receptacles
Tamper Resistant
No
Type
Single
Cover Type
No Cover
Includes Mounting Hardware
Yes
GFCI
No
Contact Material
Nickel-Plated Brass
AFCI
No
UL 94 Flammability Rating
V-0, V-2
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
Housing Material
Nylon (Face)
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
For Location
Indoor
Shrouded
No
Connection Orientation
Straight
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Industrial
Surge Protection
No
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3 Wire Grounding
Receptacle Style
Single
Approvals
UL
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
20A 125V, 2p3w
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
Top: UL 94V-2, Base: UL 94V-0
Device Color
Brown

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
•
