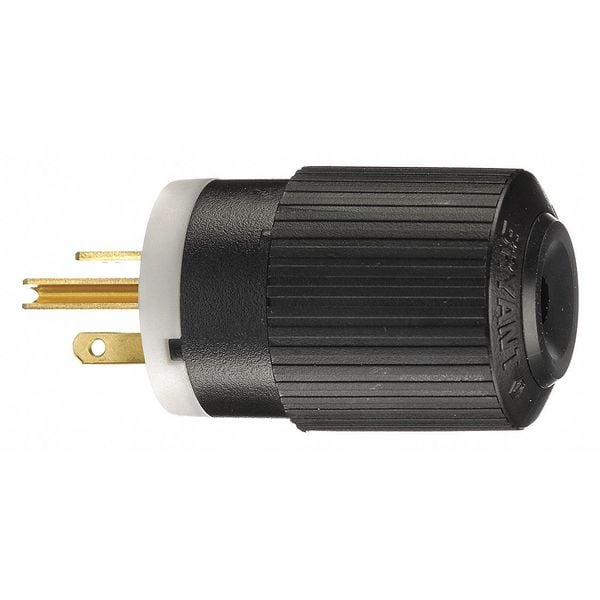

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # BRY5366NP

  • Zoro # G4438701

product price:  $19.25
/ea

Key Features

NEMA Plug Configuration
5-20P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BRY5366NP
Zoro #
G4438701
UPC #
781786005884
Country of Origin
China

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.245 in to 0.655 in
Maximum Wire Size
12 AWG
Face Diameter
1.38 in
Minimum Wire Size
14 AWG
Body Length
2.18 in
Outside Diameter
1.52 in
Display Size
Standard Sized
Width
1.52 in
Wire Size
#14 AWG to #12 AWG
Height
1.38 in
Length
2.18 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
Not Rated
Standards
CSA, UL
Resistance Properties
Chemical Resistant, Impact Resistant
Phase - Plugs and Receptacles
1
HP
1.0
Grade
Industrial
Material
Nylon
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
Corrosion Resistant
No
Special Features
Ergonomic, Fluted Body Design
Voltage
125VAC
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Antimicrobial
No
Horsepower Rating
1 hp
For Environment
Dry
Market
Commercial, Industrial
Housing Material
Composite
Insulation Material
Nylon
Compatible with Series
Triple Gripper(R)
For Location
Indoor
Polarized
Yes
Application
Extra Heavy Duty Industrial Grade; Industrial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wire Gauge
#14 AWG to #12 AWG
Wattage
2500
Style
Extra Heavy Duty
Mounting Hardware
Cord Mounted
Cord Type
All Portable
Series
Triple Gripper(R)
Material - Mounting Hardware
Cord Mounted
Cord Range
0.300"-0.655"
Power Indicating Light
No
Shrouded
Yes

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.38 in, For Maximum Cable Diameter 0.655 in
