  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

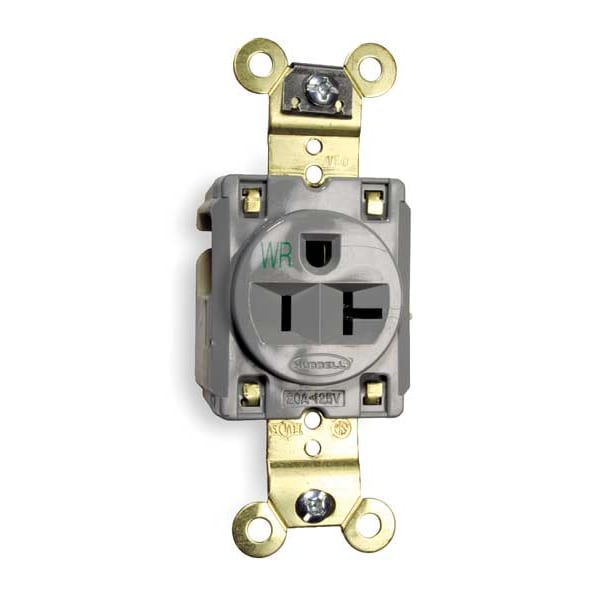

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5361GRYWR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5361GRYWR

  • Zoro # G2414867

product price:  $31.50
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5361GRYWR
Zoro #
G2414867
UPC #
783585320656
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Minimum Wire Size
12 AWG
Face Plate Height
1.9 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-600
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Voltage
125VAC
Wiring Method
Back, Side
Application Environment
Harsh and Heavy Use Industrial
Number of Gangs
1
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
Yes
Corrosion Resistant
No
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Outlet Type
Single
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Weather Resistant
Yes
Material
Nylon/Reinforced PET
Outlet Type - Plugs and Receptacles
Single
NEMA Configuration
5-20
Sub-Category
Single Receptacles
Type
Single
GFCI
No
Housing Material
Nylon (Face)
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Polarized
Yes
Shrouded
No
Grade
Federal Specification
Horsepower Rating
1 hp
Contact Material
Nickel-Plated Brass
Market
Industrial
AFCI
No
Includes Mounting Hardware
Yes
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Face Style
Finder Groove
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Current Interrupting
Certified for current interrupting at full rated current
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Flammability
UL 94 V-2 or better
Top Material
Nylon
Power Contacts Material
.032" (.81) Brass
Other Available Colors
Brown, Ivory, Gray
Standard
NEMA
Device Color
Gray
Mounting Screw Material
Steel-Zinc Plated
Rating
15A, 125V
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Base Material
Reinforced PET
Mounting Strap Material
.050" (1.3) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Poles and Wires
2 Pole, 3-Wire Grounding
Receptacle Style
Single
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Horsepower
1
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 or better Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
5-20R
Application
Extra Heavy Duty Specification Grade
Environmental Conditions
Weather Resistant
Series
Extra Heavy Duty
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-600 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
Wattage
2500 W
Material - Mounting Hardware
Screw Mounting
Style
Finder Groove Face

Description

The HUBBELL HBL5262 is a single, flush mount industrial receptacle rated for 20A and 125V AC. Rated for use in heavy duty applications, it features a traditional face with Finder Groove style and is intended for installation in demanding environments. This NEMA 5-20R outlet supports both back and side wiring methods, accommodates #12 to #10 AWG copper conductors, and includes mounting hardware.


Key Features of the HUBBELL HBL5262 Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20R single outlet

  • Mounting Type: Flush mount with included hardware

  • Wiring Method: Back or side wired screw terminals; accepts #12–#10 AWG copper wire

  • Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts

  • Weather Resistant: Rated for use in weather-resistant installations

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-600, NEMA WD-6 compliant

  • Dielectric Strength & Flammability Rating: Withstands minimum 2,000V; UL94 V-2 flammability rating
