  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

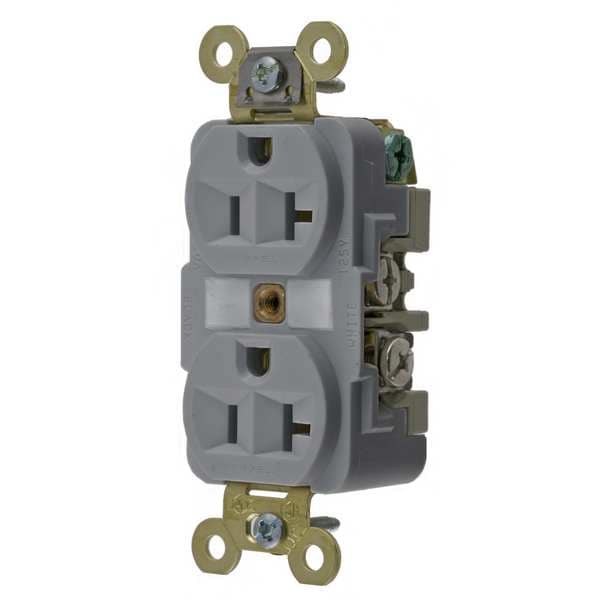

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5362GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362GY

  • Zoro # G2321164

product price: $31.52
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5362GY
Zoro #
G2321164
UPC #
783585435268
Country of Origin
United States

Dimensions

Height
1.19 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Wire Size
#14 AWG to #10 AWG
Length
3.28 in
Width
1.65 in
Display Size
Standard Sized Product
Face Plate Width
1.7 in
Overall Depth
1.2 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
No
Voltage
125VAC
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
HP
1 hp
Material
Nylon
Outlet Type
Duplex
NEMA Configuration
5-20
Application Environment
Harsh and Heavy Use Industrial
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Application
Extra Heavy Duty Specification Grade
UPC
783585000000
Type
Standard Duplex
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Amperage
20 A
Nema Rating
5-20R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Finder Groove Face
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Maximum Horsepower
1
Series
Extra Heavy Duty
Connectivity
Back and Side Wired Screw Terminals
Wattage
2500 W
Carton Quantity
10
Weight
0.25 lb
Grade
Federal Specification
Market
Industrial
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-0, V-2
Housing Material
Nylon (Face)
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
Contact Material
Nickel-Plated Brass
Cover Type
No Cover
Polarized
Yes
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
AFCI
No
Shrouded
No
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Connection Orientation
Straight
GFCI
No
Horsepower
1
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Mounting Screw Material
Steel-Zinc Plated
Auto Ground Clip Material
Stainless Steel
Face Style
Finder Groove
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Receptacle Grade
Extra Heavy Duty Spec Grade
Receptacle Style
Duplex
Power Contacts Material
.037" (.9) Brass
Poles and Wires
2 Pole, 3-Wire Grounding
Base Material
Reinforced PET
Rating
20A, 125V
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Top Material
Nylon
Face Shape
Traditional
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Strap Material
.050" (1.3) Brass
Device Color
Gray
Ground Screw Material
#10-32 Silicon Bronze (Green)
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Standard
NEMA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Back wired ground terminal allows faster, easier installation
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
