  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

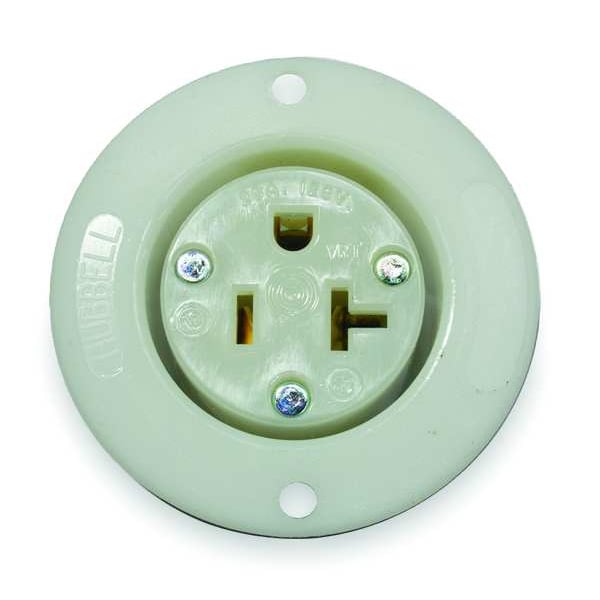

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5379C - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5379C

  • Zoro # G2697186

product price: $39.49
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5379C
Zoro #
G2697186
UPC #
783585174457
Country of Origin
United States

Dimensions

Height
1.71 in
Width
1.69 in
Overall Depth
1.7 in
Maximum Wire Size
10 AWG
Flange Height
1.7 in
Flange Diameter
2.6 in
Minimum Wire Size
18 AWG
Mount Hole Center-to-Center Height
2.2 in
Wire Size
#18 AWG to #12 AWG
Display Size
Standard Sized Product
Dimensions
1.71 in x 1.69 in x 1.71 in
Length
1.71 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Flanged
Mounting Type - Plugs and Receptacles
Panel
Application Environment
Industrial
Plate Code
F
Sub-Category
Flanged Receptacles
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Outlet Type
Single
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Tamper Resistant
No
Corrosion Resistant
No
Weather Resistant
No
Number of Gangs
1
Material
Nylon/Polycarbonate
Mounting Type
Panel
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back
HP
1 hp
Type
Straight Blade
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
AFCI
No
Surge Protection
No
Connection Orientation
Straight
Contact Material
Brass
Includes
Mounting Hardware
NEMA Enclosure Rating
1
GFCI
No
UL 94 Flammability Rating
V-2
Market
Commercial, Industrial
Polarized
Yes
Shrouded
No
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Flange Material
Nylon
Cover Type
No Cover
Grade
Federal Specification
Horsepower
1
Flange Style
Standard Non-Metallic
Face Style
Finder Groove
Receptacle Grade
Heavy Duty Spec Grade
Device Color
White
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V2.
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Base Material
Polycarbonate
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass, Multiple Drive
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard
NEMA
Top Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screw Material
Brass-Nickel Plated
Power Contacts Material
.040" (1.0) Brass
Rating
15A, 125V
Terminal Accommodation
#18-#10 AWG copper stranded or solid conductor only
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Number Of Conductors
3-Wire
Cord Range
0.230"-0.720" (5.8-18.3)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Conductor Range
#18 AWG to #10 AWG
Series
Extra Heavy Duty
Application
Heavy Duty
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Wattage
2500 W

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #8-32 Multiple drive terminal screws
• Mounting screws included
