  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

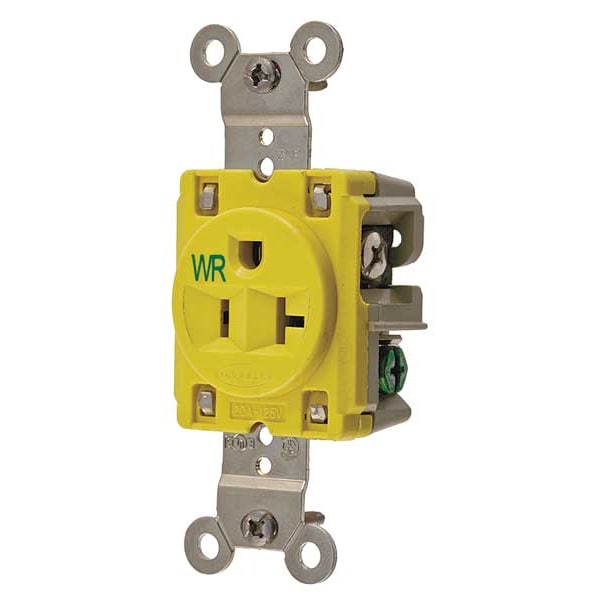

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL53CM61 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL53CM61

  • Zoro # G2544884

product price: $36.69
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL53CM61
Zoro #
G2544884
UPC #
783585808321
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Face Plate Height
1.9 in
Overall Depth
1.2 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Side
Mounting Type
Flush
Special Features
Corrosion resistant
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Single
Corrosion Resistant
Yes
Weather Resistant
No
Power Indicator
No
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type
Single
Material
Nylon
Tamper Resistant
No
Sub-Category
Single Receptacles
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Application Environment
Industrial
Surge Suppression
No
Voltage
125VAC
Type
Single Receptacle
GFCI
No
AFCI
No
Housing Material
Nylon (Face)
Contact Material
Nickel-Plated Brass
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Polarized
Yes
UL 94 Flammability Rating
V-0, V-2
Cover Type
No Cover
NEMA Enclosure Rating
1
Market
Industrial
Grade
Federal Specification
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
Device Color
Yellow
Flammability
Top: UL 94V-2, Base: UL 94V-0
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Single
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3 Wire Grounding
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Rating
20A 125V, 2p3w
Approvals
UL
Application
Extra Heavy Duty Specification Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series
HBL Extra Heavy Duty
Style
Finder Groove Face
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Nema Rating
5-20R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
2500 W
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Corrosion resistant
Horsepower - Maximum
1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Housing Color Yellow, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Corrosion Resistant
