  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

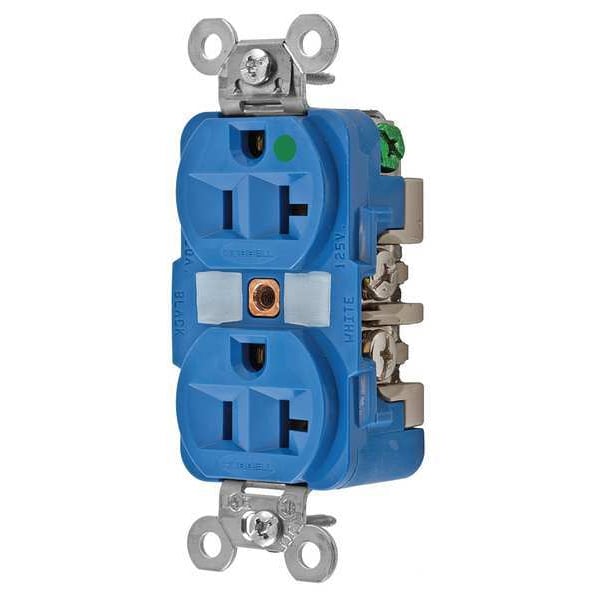

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300BL - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300BL

  • Zoro # G5170672

product price: $36.11
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300BL
Zoro #
G5170672
UPC #
783585176604
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Dimensions
3.28 in x 1.65 in x 1.19 in
Wire Size
#12 AWG to #10 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Height
1.19 in
Width
1.65 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-20
Material
Nylon
Color
Blue
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Outlet Type
Duplex
Tamper Resistant
No
Power Indicator
No
Application Environment
Heavy Use Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method
Back, Side
Weather Resistant
No
Sub-Category
Duplex Receptacles
Mounting Type
Flush
HP
1 hp
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Maximum Horsepower
1
Nema Rating
5-20R
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Type
Receptacle
Carton Quantity
10
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Style
thermoplastic polyester face
Series
Hospital Grade
Amperage
20 A
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
GFCI
No
Horsepower Rating
1 hp
Polarized
Yes
Cover Type
No Cover
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Housing Material
Thermoplastic
NEMA Enclosure Rating
1
Surge Protection
No
Shrouded
No
AFCI
No
Grade
Hospital Grade Fed. Spec.
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Terminal Screws
Plated brass
By-Pass Power Contacts
.036". (.9) Nickel plated brass
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Ground Contacts
Brass
Face
PBT
Device Color
Blue
Mounting Strap
Nickel plated brass
Automatic Self-grounding Clip
Stainless steel
Base
PBT
Mounting Screws
Stainless steel
Clamping Plate
Nickel plated brass
Flammability
UL 94 V-0
Wattage
2500 W
Application
Extra Heavy Duty Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
1
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
•
