  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

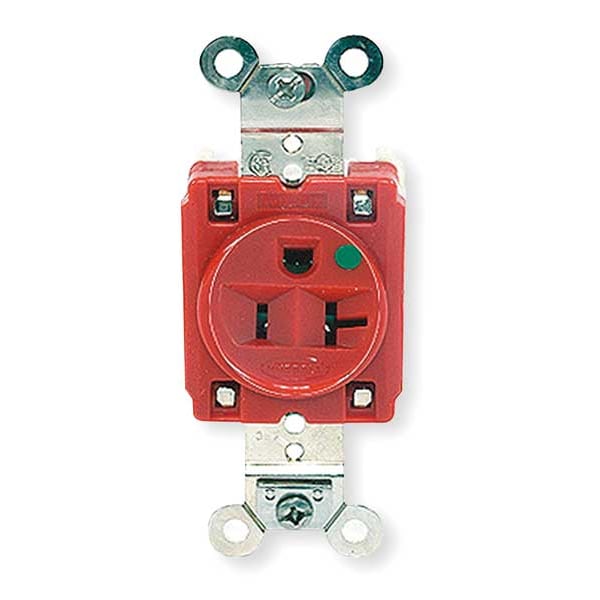

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8310R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8310R

  • Zoro # G2666781

product price: $30.99
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8310R
Zoro #
G2666781
UPC #
783585015958
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Face Plate Width
1.6 in
Face Plate Height
1.9 in
Length
3.28 in
Dimensions
3.28 in x 1.63 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Single
Material
Impact Modified PBT/Reinforced PET
Weather Resistant
No
Number of Gangs
1
HP
1 hp
Power Indicator
No
NEMA Configuration
5-20
Outlet Type
Single
Voltage
125VAC
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Flush
Sub-Category
Single Receptacles
Type
Single
Surge Protection
No
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Shrouded
No
NEMA Enclosure Rating
1
Contact Material
Brass
UL 94 Flammability Rating
5VA, V-0, V-2
AFCI
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
GFCI
No
Housing Material
Nylon
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Polarized
Yes
Grade
Hospital Grade Fed. Spec.
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3 Wire
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Device Color
Red
Nema Rating
5-20R
Horsepower - Maximum
1
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
2500 W
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Application
Extra Heavy Duty Hospital Grade
Dielectric Strength
Withstands 2,000V minimum
Style
Finder Groove Face
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• One-piece nickel-plated brass integral ground strap
• Patented bypass contact design
