  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

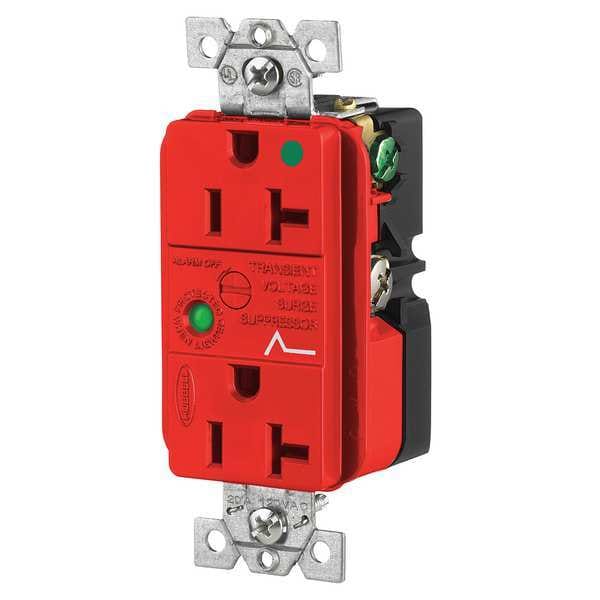

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8362RSA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8362RSA

  • Zoro # G5170681

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8362RSA
Zoro #
G5170681
UPC #
783585060538
Country of Origin
China

Dimensions

Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
4 in
Face Plate Width
1.3 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Outlet Type
Decorator
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Application Environment
Hospital Grade
Mounting Type
Flush
Number of Gangs
1
Surge Suppression
Yes
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
NEMA Configuration
5-20
Tamper Resistant
No
Corrosion Resistant
No
Material
Nylon
Voltage
125VAC
Special Features
Audible Alarm
Power Indicator
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
HP
1 hp
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Type
Duplex
Shrouded
No
GFCI
No
Minimum Operating Temperature
32 Degrees F
Horsepower Rating
1 hp
AFCI
No
Surge Protection
Yes
NEMA Enclosure Rating
1
Connection Orientation
Straight
Maximum Operating Temperature
140 Degrees F
For Location
Indoor
Polarized
Yes
Cover Type
No Cover
Visual Indicator Lights
Power Connected
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Grade
Hospital Grade Fed. Spec.
Device Grade
Heavy Duty Spec Grade
Poles and Wires
2 Pole, 3 Wire
Indicator(s) Type
LED and Audible Alarm
Application
Decorator Duplex with Light and Alarm
Frequency Rating
60 Hz
Performance
Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Material - Mounting Hardware
Mounting Screws
Series
Hospital Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Outlet
Straight Blade
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186
Response Time
5
Nema Rating
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

• High-impact nylon face resists breakage
• Automatic grounding clip attached to bridge
• Power-on indicator light verifies instantly that power is available
• Distinctive surge symbol for visual identification of surge suppression receptacle
