  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

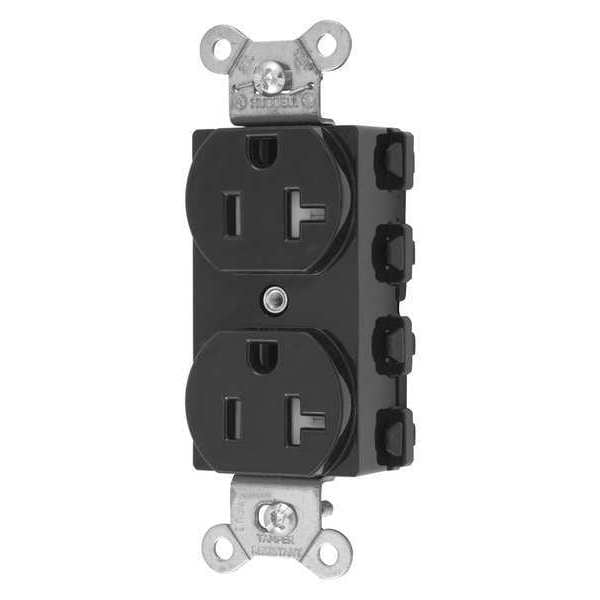

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP5362BKTRA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP5362BKTRA

  • Zoro # G4440600

product price: $17.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP5362BKTRA
Zoro #
G4440600
UPC #
783585552880
Country of Origin
Mexico

Dimensions

Height
1.1 in
Width
1.64 in
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Face Plate Height
2.6 in
Overall Depth
1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Voltage
125VAC
Surge Suppression
No
Tamper Resistant
Yes
Material
Nylon
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Corrosion Resistant
No
Outlet Type
Duplex
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
NEMA Configuration
5-20
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Modular
NEMA Rating
1
AFCI
No
Contact Material
Brass
Shrouded
No
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Includes
Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Surge Protection
No
Grade
Federal Specification
For Location
Indoor
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Market
Commercial
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Polarized
Yes
Cover Type
No Cover
Horsepower - Maximum
1
Application
Extra Heavy Duty Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Smooth Face
Series
Extra Heavy Duty
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
2500 W
Number Of Conductors
3-Wire Grounding
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Audible SNAP, indicates solid connection
• Reduces installation time
• Tamper-Resistant
• Assembled in USA
