Shop LEVITON
See all product information

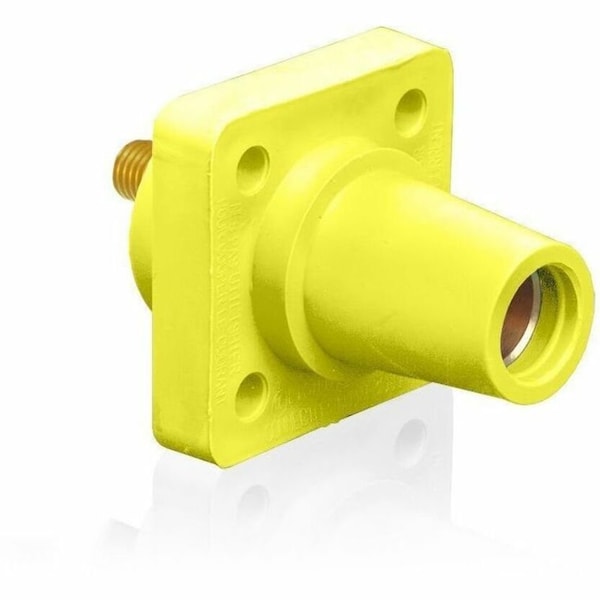

Female Receptacle
Mfr # 16R24-UY
Zoro # G315866893
product price:Â $36.99
/eaKey Features
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Housing Color
Yellow
Overall Length
2.57 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 16R24-UY
- Zoro #
- G315866893
- UPC #
- 078477766477
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 2.57 in
- Flange Height
- 2.27 in
- Flange Width
- 0.5 in
- Stud Thread Size
- 1/2"-13
- Minimum Wire Size
- 2 AWG
- Maximum Wire Size
- 4/0 AWG
- Overall Width
- 2.27 in
Details
- Item
- Single Pole Receptacle
- Current Rating
- 400 A
- Voltage Rating
- 600V AC, 600V DC
- Standards
- CSA Standard : 1691, UL 1691
- Housing Color
- Yellow
- Gender
- Female
- End Type
- Taper Nose
- Phase
- Single
- Contact Material
- Brass
- Housing Material
- Santoprene TPV
- Mounting Style
- Threaded Mounting
- Flange Shape
- Square
- Terminal Connection Type
- Threaded Stud
- NEMA Enclosure Rating
- 3R
- Connection Orientation
- Straight
- For Location
- Indoor, Outdoor
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Yellow, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.27 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Threaded Stud
