  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

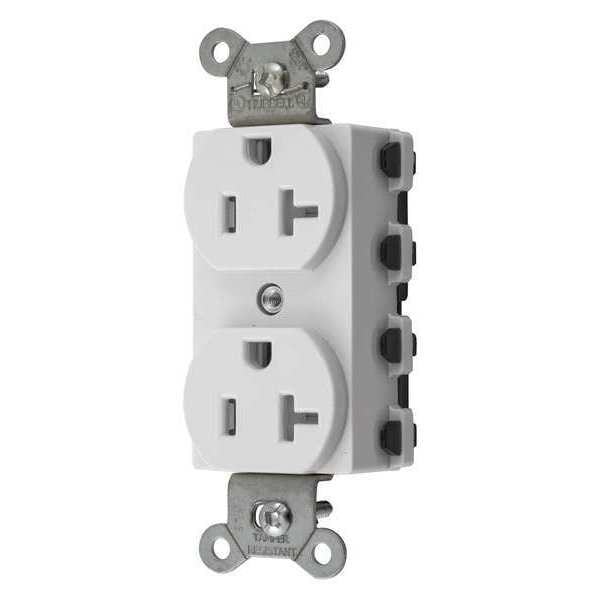

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP5362WTRA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP5362WTRA

  • Zoro # G4440661

product price:  $17.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SNAP5362WTRA
Zoro #
G4440661
UPC #
783585553115
Country of Origin
Mexico

Dimensions

Width
1.64 in
Height
1.1 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Width
1.6 in
Length
3.28 in
Wire Size
#12 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.64 in x 1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
HP
1 hp
Wiring Method - Plugs and Receptacles
Modular
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Mounting Type
Flush
Surge Suppression
No
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Material
Nylon
Number of Gangs
1
Tamper Resistant
Yes
Corrosion Resistant
No
NEMA Rating
1
Mounting Type - Plugs and Receptacles
Flush
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
GFCI
No
Cover Type
No Cover
Housing Material
Nylon
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Shrouded
No
For Location
Indoor
Contact Material
Brass
Includes
Wall Plate or Weatherproof Cover
Market
Commercial
Connection Orientation
Straight
Surge Protection
No
Series
Extra Heavy Duty
Application
Extra Heavy Duty Specification Grade
Style
Smooth Face
Horsepower - Maximum
1
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Wattage
2500 W
Number Of Conductors
3-Wire Grounding
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL SNAPConnect® 5-20R Receptacle is a 20 amp, 125V AC flush mount duplex outlet suitable for commercial applications. This modular device features a connectorized wiring method that allows for efficient installation and consistent connections by snapping the terminal into place during final assembly. The receptacle is tamper-resistant, constructed with a nylon housing, intended for indoor dry locations meeting specification grade requirements.


Key Features of the HUBBELL SNAPConnect® 5-20R Receptacle:

  • Amperage/Voltage: Rated for 20 A, 125V AC operation

  • NEMA Configuration: Standard duplex outlet with NEMA 5-20R configuration

  • Mounting Type: Flush mount design for single-gang installations

  • Wiring Method: Modular back-wired connection using SNAPConnect technology

  • Tamper Resistant: Built-in tamper resistance feature

  • Material: Nylon housing with brass contacts provides durability in commercial settings

  • Standards Compliance: Certified to CSA C22.2 No.42, UL Listed to UL498, Federal Specification W-C-596, NEMA WD-6 compliant

  • Operating Temperature Range: -40°F to 167°F (maximum continuous temperature of 75°C)

  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage test
