  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

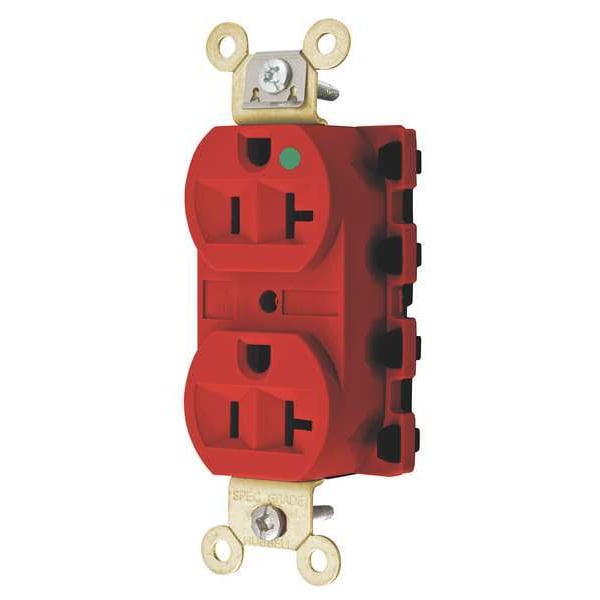

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8300RA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8300RA

  • Zoro # G4559816

product price: $22.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8300RA
Zoro #
G4559816
UPC #
783585247632
Country of Origin
China

Dimensions

Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Maximum Wire Size
12 AWG
Face Plate Height
2.6 in
Face Plate Width
1.6 in
Height
1.1 in
Length
3.28 in
Width
1.64 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-20
Application Environment
Heavy Use Hospital Grade
Power Indicator
No
Color
Red
Number of Gangs
1
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Corrosion Resistant
No
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Wiring Method
Back
Sub-Category
Duplex Receptacles
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Material
Nylon
Wiring Method - Plugs and Receptacles
Modular
Outlet Type
Duplex
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Series
Hospital Grade
Type
Standard Duplex
Connectivity
Connectorized
Style
Finder Groove Face
Maximum Horsepower
1
Nema Rating
5-20R
Carton Quantity
10
Number Of Conductors
3-Wire Grounding
Brand
Hubbell Wiring Device-Kellems
Amperage
20 A
Polarized
Yes
Contact Material
Brass
Surge Protection
No
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
GFCI
No
Horsepower Rating
1 hp
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
For Location
Indoor
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
Connection Orientation
Straight
NEMA Enclosure Rating
1
Cover Type
No Cover
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Face
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Receptacle certified for current interrupting at full rated current
Automatic Self-grounding Clip
Stainless steel
Base
PBT
Ground Contacts
Brass
Device Color
Red
Mounting Strap
Brass
Flammability
UL 94V-2
Mounting Screws
Zinc plated steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Power Contacts
Brass
Wattage
2500 W
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Application
Hospital Grade
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R RD is a duplex straight blade receptacle intended for modular wiring installations. Featuring SNAPConnect® technology, this device enables the connector to be installed during rough-in and then attached after wall completion. The receptacle is intended for use in high-traffic or commercial settings and includes an audible snap feature that indicates when connection is made.


Key Features of the HUBBELL 20A Duplex Modular Receptacle:

  • Amperage/Voltage: Rated for 20 A, 125 VAC operation

  • NEMA Configuration: 5-20R duplex outlet with Finder Groove Face style

  • Wiring Method: Modular back-wired connection supports #12 AWG wire size

  • Mounting Type: Flush mount design with included mounting hardware

  • Material Construction: Nylon face and housing; brass power and ground contacts; stainless steel self-grounding clip

  • Certification & Standards: Hospital Grade Fed. Spec., CSA Certified C22.2 No.42, NEMA WD-6 compliant, UL Listed to UL498 File E2186

  • Performance Ratings: Withstands dielectric voltage of at least 2,000V; flammability rated UL94 V-2; operating temperature range -40°C to +75°C (without impact)

  • Audible Snap Feature: Includes an audible snap feature that indicates when connection is made
