- Item

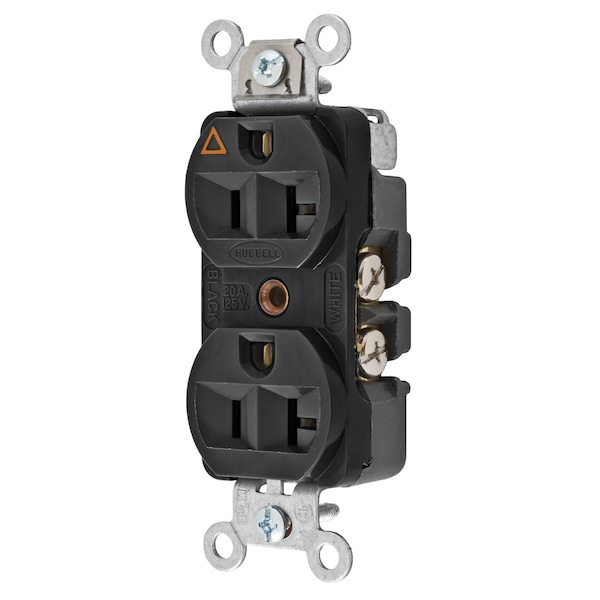

- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Isolated Ground
- Housing Color
- Black
- Mount Type
- Flush
- Standards
- CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
- Flange Type
- Non-Flanged
- Material
- Nylon
- Application
- Hubbell-Pro Heavy Duty
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Enhancement
- Isolated Ground
- Top Material
- Nylon
- Receptacle Grade
- Construction Series Specification Grade
- Auto Ground Clip Material
- Stainless Steel
- Terminal Accommodation
- #12-#10 AWG copper stranded or solid conductor only
- Certification
- -UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
- Current Interrupting
- Certified for current interrupting at full rated current
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Mounting Screw Material
- Steel-Zinc Plated
- Flammability
- UL 94 V2.
- Dielectric Voltage
- Withstands 2,000V minimum
- Rating
- 20A, 125V
- Product Type
- Flush-receptacles
- Ground Screw Material
- #8-32 Brass, Multiple Drive (Green)
- Base Material
- Reinforced PET
- Power Contacts Material
- .037" (.9) Phosphor Bronze
- Face Style
- Finder Groove
- Standard
- NEMA
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Other Available Colors
- Orange, Black, Gray, Ivory, White, Office White
- Receptacle Style
- Duplex
- Device Color
- Black
- Face Shape
- Traditional
- Terminal Screw Material
- #8-32 Brass /Ni plated for neutral
- Mounting Strap Material
- .050" (1.3) Brass
- Poles and Wires
- 2 Pole, 3-Wire Grounding
- Horsepower
- 1
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Nema Rating
- 5-20R
- Series
- Hubbell-PRO
- Horsepower - Maximum
- 1
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285
Fed. Spec. WC596
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Material - Mounting Hardware
- Screw Mounting
- Wattage
- 2500 W
- Number Of Wires
- 3-Wire
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Dielectric Strength
- Withstands 2,000V minimum
- Style
- Finder Groove Face
