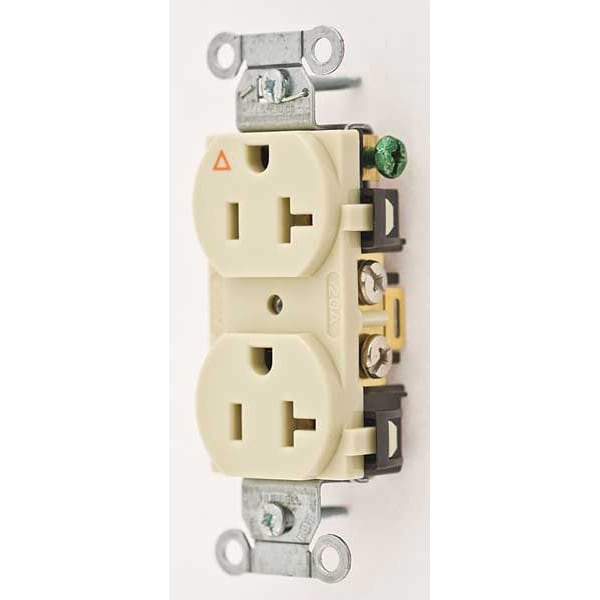

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground
Mfr # IG5352I
Zoro # G0268816
product price: $14.29
/eaKey Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IG5352I
Zoro #
G0268816
UPC #
783585146812
Country of Origin
China
Dimensions
Width
1.57 in
Length
3.28 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.07 in
Height
1.07 in
Wire Size
#12 AWG to #10 AWG
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Description
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Triangle marking on face indicates isolated ground
• Slender/compact design
• Smooth Face
• Triangle marking on face indicates isolated ground
• Slender/compact design
• Smooth Face
