  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

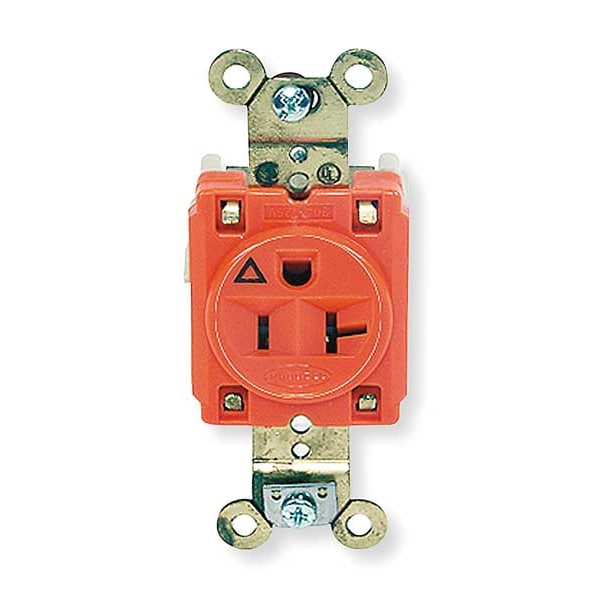

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG5361 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG5361

  • Zoro # G2110762

product price:  $42.95
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG5361
Zoro #
G2110762
UPC #
783585876856
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
1.9 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Length
3.28 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, UL Listed
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Single
Surge Suppression
No
Mounting Type
Flush
Special Features
Isolated Ground
Corrosion Resistant
No
Sub-Category
Single Receptacles
Application Environment
Industrial
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Single
Tamper Resistant
No
NEMA Configuration
5-20
Number of Gangs
1
Weather Resistant
No
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Voltage
125VAC
Material
Nylon/Reinforced PET
Mounting Type - Plugs and Receptacles
Flush
Wiring Method
Back, Side
Type
Single
Polarized
Yes
Connection Orientation
Straight
NEMA Enclosure Rating
1
Grade
Federal Specification
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Shrouded
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Nickel-Plated Brass
Surge Protection
No
Cover Type
No Cover
Horsepower Rating
1 hp
Housing Material
Nylon (Face)
UL 94 Flammability Rating
V-0, V-2
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
GFCI
No
AFCI
No
Top Material
Nylon
Device Color
Orange
Rating
15A, 125V
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
1
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.032" (.8) Brass
Base Material
Reinforced PET
Current Interrupting
Certified for current interrupting at full rated current
Auto Ground Clip Material
Stainless Steel
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Flammability
UL 94 V2 or better., Top: UL 94V-2, Base: UL 94V-0
Face Shape
Traditional
Face Style
Finder Groove
Receptacle Grade
Heavy Duty Spec Grade
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Receptacle Style
Single
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Enhancement
Isolated Ground
Mounting Strap Material
.050" (1.3) Brass
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Specification Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Finder Groove Face
Wattage
2500 W
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Nema Rating
5-20R

Description

The HUBBELL 5-20R Isolated Ground Receptacle is a single, flush-mount electrical outlet rated for 20A and 125V AC. Suitable for commercial and industrial applications requiring specification grade performance, this receptacle features an isolated ground with isolated ground construction that separates grounding contacts from the mounting strap. The device accommodates both back and side wiring with screw terminals, accepts #14–#10 AWG copper conductors, and includes mounting hardware.


Key Features of the HUBBELL 5-20R Isolated Ground Receptacle:

  • Isolated Ground: Insulation barrier construction separates ground contacts from the mounting strap; dedicated green grounding screw provided.

  • NEMA Configuration: 5-20R (2-pole, 3-wire grounding), polarized design.

  • Amperage/Voltage Rating: Rated for 20A at 125V AC; rated for current interrupting at full rated current.

  • Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts; steel-zinc plated mounting screws.

  • Wiring Method: Back or side wired using screw terminals; suitable for #14–#10 AWG copper stranded or solid wire only.

  • Operating Temperature Range: -40°C to +75°C (without impact).

  • Flammability Ratings: Top UL94 V-2, Base UL94 V-0 flammability classification.

  • Certifications & Standards: UL Listed to UL498 File E2186, CSA C22.2 No.42 File 285, Federal Specification W-C-596G, NEMA WD-6 compliant.
