  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

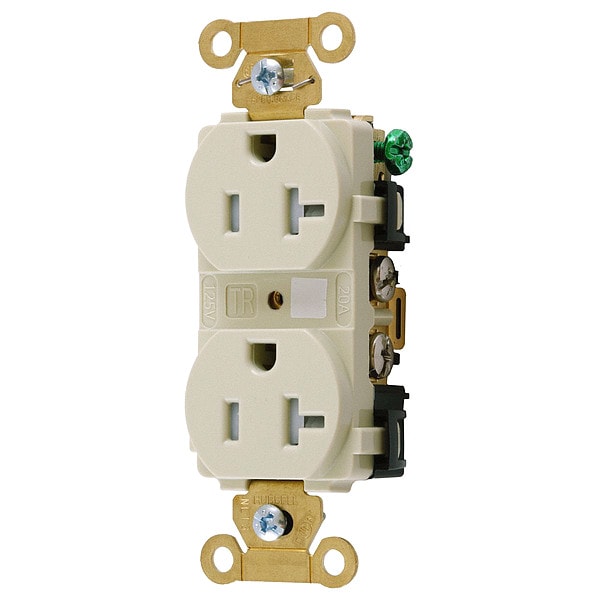

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory HBL5362I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # HBL5362I

  • Zoro # G0448131

product price: $31.52
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5362I
Zoro #
G0448131
UPC #
783585435282
Country of Origin
United States

Dimensions

Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.65 in x 1.19 in
Width
1.65 in
Height
1.19 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
Corrosion Resistant
No
Color
Ivory
Surge Suppression
No
Application Environment
Harsh and Heavy Use Industrial
Tamper Resistant
No
Sub-Category
Duplex Receptacles
Power Indicator
No
Material
Nylon
Outlet Type
Duplex
Wiring Method
Back, Side
Mounting Type
Flush
Weather Resistant
No
Voltage
125VAC
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-20
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
HP
1 hp
Connectivity
Back and Side Wired Screw Terminals
Style
Finder Groove Face
Carton Quantity
10
Weight
0.25 lb
Amperage
20 A
Application
Extra Heavy Duty Specification Grade
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Type
Standard Duplex
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Maximum Horsepower
1
Dielectric Strength
Withstands 2,000V minimum
Series
Extra Heavy Duty
Mounting Hardware Material
Screw Mounting
Nema Rating
5-20R
Wattage
2500 W
Environmental Rating
Indoor Dry Unless Protected By Additional Means
UPC
783585000000
Market
Industrial
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Surge Protection
No
NEMA Enclosure Rating
1
Shrouded
No
Connection Orientation
Straight
Grade
Federal Specification
GFCI
No
Housing Material
Nylon (Face)
For Location
Indoor
UL 94 Flammability Rating
V-0, V-2
Polarized
Yes
Includes Mounting Hardware
Yes
AFCI
No
Cover Type
No Cover
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap Material
.050" (1.3) Brass
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.037" (.9) Brass
Auto Ground Clip Material
Stainless Steel
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Voltage
Withstands 2,000V minimum
Face Style
Finder Groove
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Ivory
Receptacle Grade
Extra Heavy Duty Spec Grade
Receptacle Style
Duplex
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Reinforced PET
Top Material
Nylon
Face Shape
Traditional
Poles and Wires
2 Pole, 3-Wire Grounding
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Horsepower
1
Mounting Screw Material
Steel-Zinc Plated
Rating
20A, 125V
Ground Screw Material
#10-32 Silicon Bronze (Green)
Standard
NEMA

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Back wired ground terminal allows faster, easier installation
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
