Shop HUBBELL WIRING DEVICE-KELLEMS

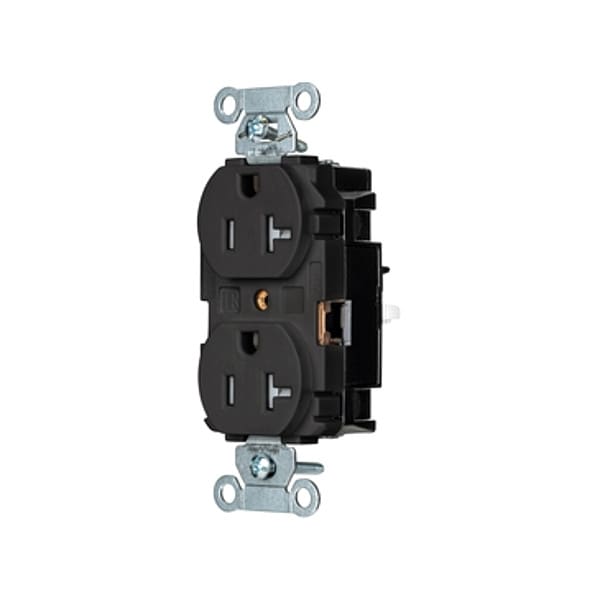

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5362STBKTR

  • Zoro # G810877219

product price:
$
11.81
/ea
Sold in multiples of 2 for $23.62

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362STBKTR
Zoro #
G810877219
UPC #
783585727363
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Contact Material
Copper Alloy
Shrouded
No
Polarized
Yes
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Number of Outlets
2
UL 94 Flammability Rating
V-2
AFCI
No
Surge Protection
No
For Location
Indoor
Grade
Federal Specification
GFCI
No
Includes
Mounting Hardware
NEMA Enclosure Rating
1
Includes Mounting Hardware
Yes
Number of Gangs
1
Minimum Operating Temperature
-40 Degrees F
Hub Type
Feed Through
Housing Material
Thermoplastic
Connection Orientation
Straight
Horsepower Rating
1 hp
Market
Commercial
Cover Type
No Cover
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
