  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded
Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR20STBK - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR20STBK

  • Zoro # G210105578

product price: $8.30
/ea
Sold in multiples of 10 for $83.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20STBK
Zoro #
G210105578
UPC #
783585728261
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Hardware
Number of Gangs
1
Housing Material
Thermoplastic
Contact Material
Copper Alloy
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Visual Indicator Lights
Power Connected
Number of Outlets
2
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
For Location
Indoor
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Market
Commercial
Grade
General Use
NEMA Enclosure Rating
1
Cover Type
No Cover
GFCI
No
AFCI
No
Hub Type
Feed Through
Polarized
Yes
Surge Protection
No
Shrouded
No

Description

The HUBBELL EdgeConnectTM Duplex Straight Blade Receptacle is an electrical outlet rated for use in indoor, dry locations. It features a screwless push-in wire termination system compatible with tool-free installation.


Key Features of the HUBBELL EdgeConnectTM Duplex Straight Blade Receptacle:

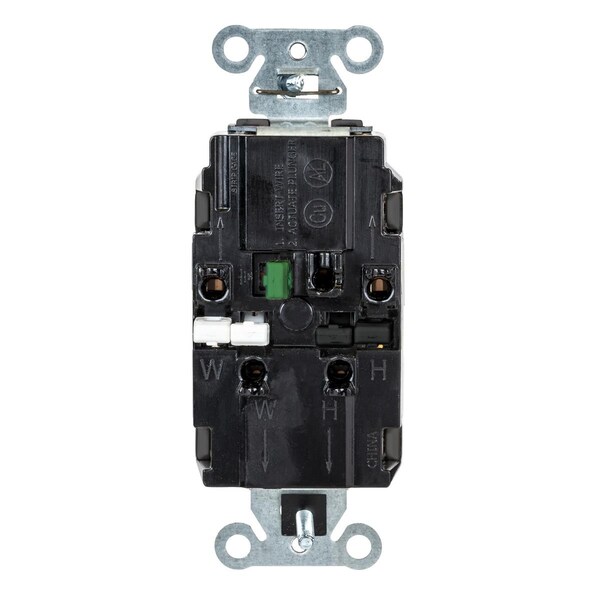

  • Wire Connection Type: Push-in back wiring with screwless spring termination intended to maintain secure connections during installation.

  • NEMA Configuration: 5-20R, suitable for standard single-phase power distribution.

  • Current/Voltage Rating: Rated for 20 A at 125V AC; supports motor loads up to 1 hp.

  • Tamper Resistant: Designed with resistance properties to help prevent unintended access or insertion into the slots.

  • Grounded: Grounded configuration compatible with grounded circuits.

  • Contact Material: Copper alloy contacts used in construction of device.

  • Face Plate Dimensions: Height of 2.8 in and width of 1.6 in; overall depth of 1.4 in; mount hole center-to-center height is 3.3 in.

  • Circuit Tab Access: Easy access split circuit tab enables flexible wiring options as needed by installers.

  • Standards Compliance: CSA Certified (22.2 No 42 File 285), NEMA WD-6, UL Listed (UL498 File No E2186).

  • Operating Temperature Range: Suitable for environments from -40°F to +167°F; accepts wire sizes from #14 AWG to #10 AWG.
