  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

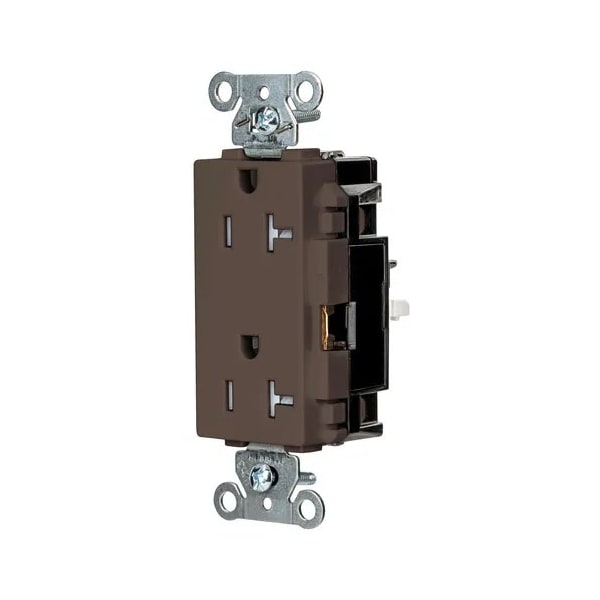

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR20STTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR20STTR

  • Zoro # G410986342

product price: $12.35
/ea
Sold in multiples of 100 for $1,235.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20STTR
Zoro #
G410986342
UPC #
783585728384
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Brown
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
For Environment
Dry
Number of Outlets
2
Contact Material
Copper Alloy
Connection Orientation
Straight
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Grade
General Use
Hub Type
Feed Through
Number of Gangs
1
Housing Material
Thermoplastic
Includes Mounting Hardware
Yes
AFCI
No
Market
Commercial
Cover Type
No Cover
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
Visual Indicator Lights
Power Connected
Surge Protection
No
GFCI
No
For Location
Indoor
Includes
Mounting Hardware
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Shrouded
No

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
