  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

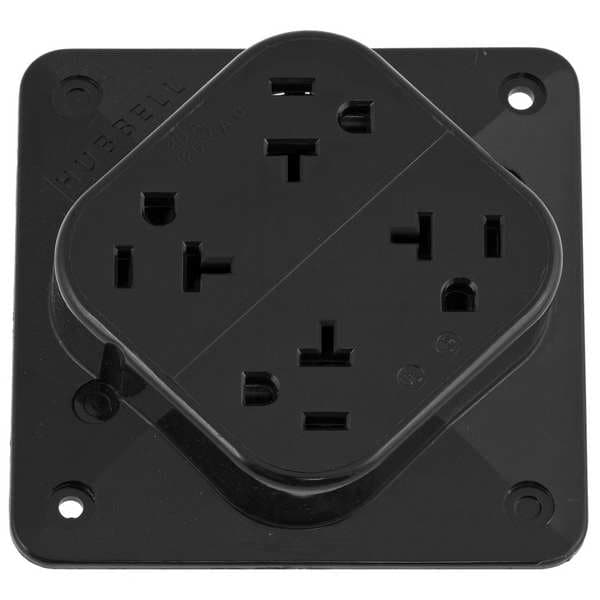

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL420BK - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL420BK

  • Zoro # G7191572

product price: $37.45
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420BK
Zoro #
G7191572
UPC #
783585014524
Country of Origin
United States

Dimensions

Height
4.30 in
Width
0.92 in
Mount Hole Center-to-Center Height
3.4 in
Mount Hole Center-to-Center Width
3.4 in
Face Plate Height
4.3 in
Face Plate Width
4.3 in
Maximum Wire Size
12 AWG
Overall Depth
4.3 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Length
4.30 in
Dimensions
4.30 in x 0.92 in x 4.30 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Surface
Standards
CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
Weather Resistant
No
Corrosion Resistant
No
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Quad
Mounting Type
Surface
Sub-Category
Four Outlet Receptacles
Mounting Type - Plugs and Receptacles
Surface
Power Indicator
No
Outlet Type
Quad
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
polycarbonate
Tamper Resistant
No
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back
Application Environment
Commercial
HP
1 hp
Number of Gangs
2
Polarized
Yes
Surge Protection
No
Housing Material
Polycarbonate
For Location
Indoor
Grade
Federal Specification
UL 94 Flammability Rating
V-2
Number of Outlets
4
Market
Commercial, Industrial
Maximum Operating Temperature
167 Degrees F
Shrouded
No
GFCI
No
Contact Material
Brass
Cover Type
No Cover
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
AFCI
No
Connection Orientation
Straight
Includes
4-PLEX Portable Box
Base Material
Polycarbonate
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Horsepower
1
Rating
15A, 125V
Terminal Screw Material
#8-32 Brass, Multiple Drive
Certification
Listed to UL Standard 498 File E2186 Certified to CSA 22.2, No. 42 File 285
Other Available Colors
Brown, Black, Gray, Ivory, White
Standard
NEMA
Top Material
Polycarbonate
Terminal Accommodation
#12 AWG stranded or solid copper conductor only
Flammability
UL 94 V-2
Current Interrupting
Capable of withstanding a fault level of 1000A, per UL498
Receptacle Style
Quad
Device Color
Black
Receptacle Grade
Heavy Duty Spec Grade
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3-Wire Grounding
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Power Contacts Material
.032" (.81) Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
2500 W
Performance
Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #12 AWG stranded or solid copper conductor only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 V-2 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 NEMA® WD-6 Compliant
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
1
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Series
4-Outlet Receptacle
Material - Mounting Hardware
Screw Mounting
Application
Industrial
Nema Rating
5-20R

Description

The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 20A and 125V AC. Suitable for use in commercial and industrial environments, it features four NEMA 5-20R outlets in a single housing with grounding capability. The receptacle uses screw terminals for wire connections and accommodates #12 AWG stranded or solid copper conductors.


Key Features of the HUBBELL 4-PLEX Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • Outlet Configuration: Quad (four) NEMA 5-20R straight blade outlets

  • Mounting Type: Surface mount design intended for indoor dry locations

  • Wiring Method: Back wiring with screw terminals; accepts #12 AWG copper wire

  • Material Construction: Polycarbonate base and housing; brass contacts

  • Grounding: Grounded, two-pole three-wire configuration

  • Circuit Features: Anchor hole and loop feature accommodates solid wire; triple wipe contacts; break-off tabs allow split wiring of outlets

  • Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant
