  11. Straight Blade Receptacle, 5-50R, 50 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

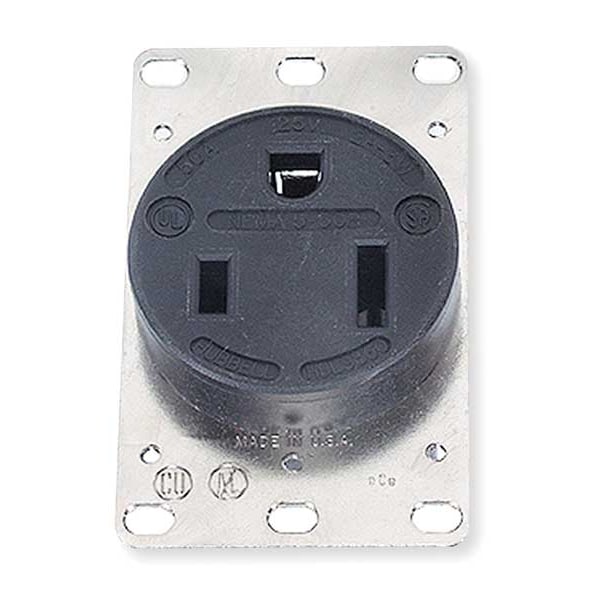

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-50R, 50 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL9360 - main

Straight Blade Receptacle, 5-50R, 50 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL9360

  • Zoro # G0982457

product price: $47.19
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-50R
Current Rating
50 A
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL9360
Zoro #
G0982457
UPC #
783585015262
Country of Origin
United States

Dimensions

Height
2.23 in
Width
2.25 in
Overall Depth
2.2 in
Face Diameter
2.1 in
Mount Hole Center-to-Center Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
4 AWG
Minimum Wire Size
12 AWG
Dimensions
3.28 in x 2.25 in x 2.23 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #4 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-50R
Current Rating
50 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL E2186
Resistance Properties
WR Rating
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-50R
HP
2 hp
Outlet Type - Plugs and Receptacles
Single
Tamper Resistant
No
Weather Resistant
No
Boot Code
C
NEMA Configuration
5-50
Power Indicator
No
Application Environment
Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Material
Thermoplastic Polyester
Outlet Type
Single
Mounting Type
Flush
Wiring Method
Back, Side
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Single Receptacles
Corrosion Resistant
No
Housing Material
Composite, Thermoplastic
UL 94 Flammability Rating
V-0
Polarized
Yes
Connection Orientation
Straight
Horsepower Rating
2 hp
Cover Type
No Cover
Market
Industrial
GFCI
No
Grade
Federal Specification
AFCI
No
NEMA Enclosure Rating
1
Surge Protection
No
Shrouded
No
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screw Material
Plated Steel
Receptacle Style
Single
Device Color
Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Voltage
Withstands 2,000V minimum
Certification
UL, CSA, Fed Spec
Mounting Screw Material
Steel-Zinc Plated
Base Material
Phenolic
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Shape
Traditional
Receptacle Grade
Heavy Duty Spec Grade
Rating
50A, 125V
Power Contacts Material
Brass
Face Style
Finder Groove
Standard
NEMA
Ground Screw Material
Plated Steel
Top Material
Phenolic
IP Suitability
IP20
Flammability
UL 94 V-0
Mounting Strap Material
.062" (1.5) Plated Steel
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Horsepower
2
Box Terminals Material
Brass
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
2
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty
Wattage
6250 W
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-50R
Industry Standard(s)
CSA Certified NEMA® WD-6 Compliant UL Listed File E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-50R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
