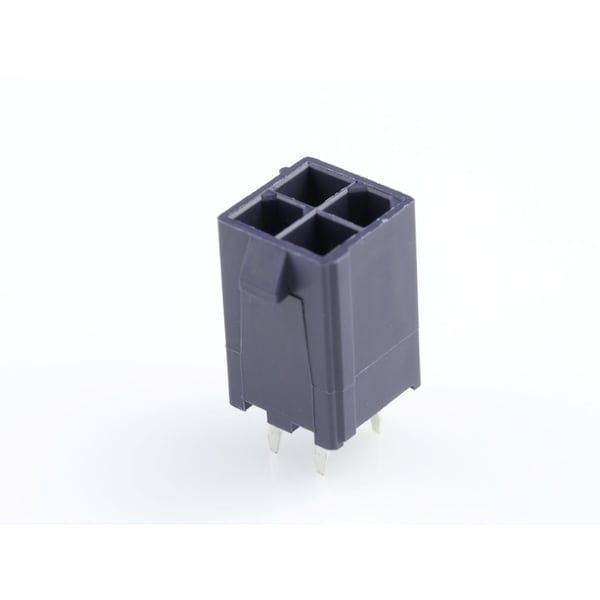

MiniFitJr Vert Hdr No Pegs 4Ckt GlowWire

  • Mfr # 172447-0204

  • Zoro # G7768692

product price:  $1.15
/ea
Sold in multiples of 91 for $104.65

Key Features

Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole
Material - Metal
Brass
Lock to Mating Part
Yes
Material - Plating Mating
Tin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
172447-0204
Zoro #
G7768692
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm

Details

Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole
Material - Metal
Brass
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Circuits (Loaded)
4
Shrouded
Fully
Circuits (maximum)
4
Durability (mating cycles max)
30
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
Max. Cycles at Max. Process Temperature
1
Process Temperature max. C
260
Duration at Max. Process Temperature (seconds)
5
Glow-Wire Capable
Yes
Orientation
Vertical
Current - Maximum per Contact
9.0A
Voltage - Maximum
600V AC (RMS)/DC
PCB Locator
Yes
Number of Rows
2
Pitch - Termination Interface
4.20mm
Pitch - Mating Interface
4.20mm
Flammability
94V-2
Material - Resin
Nylon
UL
E29179
CSA
LR19980
Color - Resin
Black
Keying to Mating Part
Yes
