  11. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

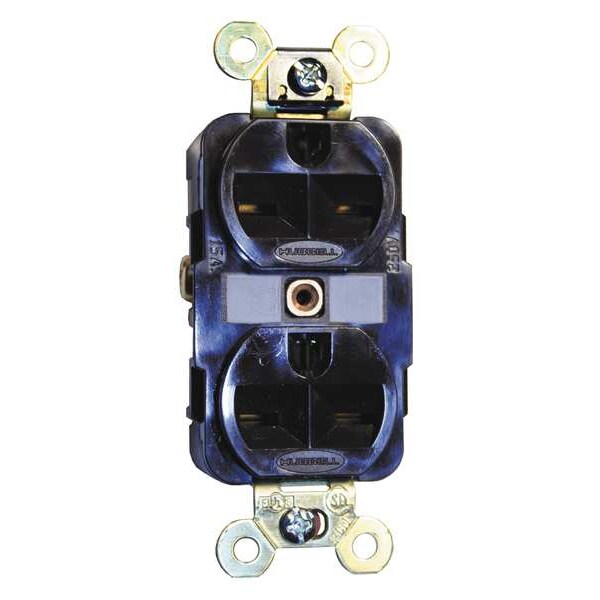

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5662 - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5662

  • Zoro # G1001384

product price: $33.05
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5662
Zoro #
G1001384
UPC #
783585435541
Country of Origin
United States

Dimensions

Height
1.19 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.65 in x 1.19 in
Width
1.65 in
Length
3.28 in
Face Plate Width
1.7 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596G
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage
250VAC
Material
Nylon
Weather Resistant
No
Mounting Type
Flush
Number of Gangs
1
Application Environment
Industrial
NEMA Configuration
6-15
Surge Suppression
No
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
HP
2 hp
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Color
Brown
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Tamper Resistant
No
Carton Quantity
10
Application
Extra Heavy Duty
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Wattage
3750 W
Maximum Horsepower
1.5
Connectivity
Back and Side Wired
UPC
783585000000
Nema Rating
6-15R
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Amperage
15 A
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Screw Mounting
Weight
0.25 lb
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Type
Duplex
Includes
Grounding Clip, Mounting Hardware
Market
Industrial
Shrouded
No
UL 94 Flammability Rating
V-0, V-2
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
GFCI
No
Cover Type
No Cover
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
For Location
Indoor
Includes Mounting Hardware
Yes
Connection Orientation
Straight
AFCI
No
Housing Material
Nylon
Horsepower Rating
1 1/2 hp
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Flammability
Top: UL 94V-2, Base: UL 94V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.037" (.9) Phosphor Bronze
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Rating
15A, 250V
Receptacle Style
Duplex
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Standard
NEMA
Horsepower
1.5
Auto Ground Clip Material
Stainless Steel
Receptacle Grade
Heavy Duty Spec Grade
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Ivory
Top Material
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Base Material
Reinforced PET
Mounting Screw Material
Stainless Steel
Mounting Strap Material
.050" (1.3) Brass
Poles and Wires
2 Pole, 3-Wire Grounding
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Face Style
Finder Groove
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Brown
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
1.5

Description

• Deep nylon body design delivers increased impact resistance
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
