Shop LEVITON
See all product information
Plugs and Receptacles

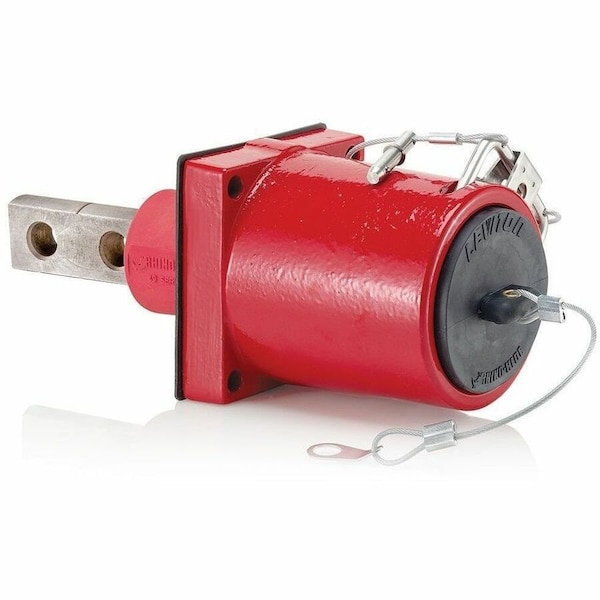

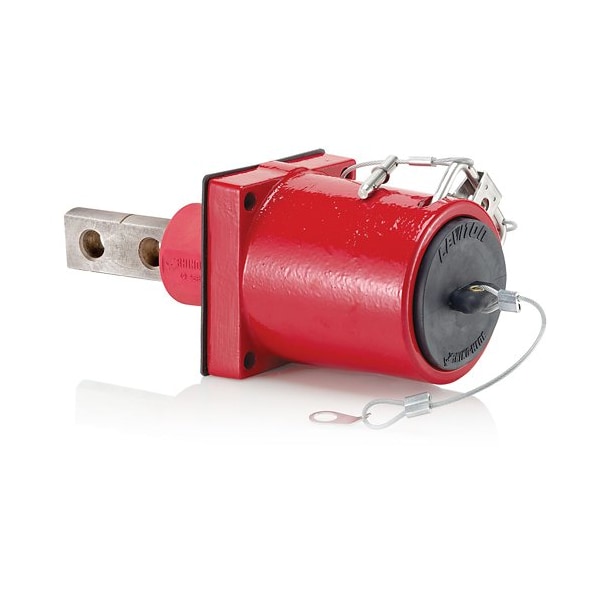

Mfr # 49FR2-XR
Zoro # G922588133
product price:Â $1,229.99
/ea
Free Shipping & Returns
Key Features
Housing Color
Red
Standards
UL Recognized
Minimum Operating Temperature
-76 Degrees F
NEMA Enclosure Rating
3R
Flange Height
4.49 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
49FR2-XR
Zoro #
G922588133
UPC #
78477386651
Country of Origin
Mexico
Dimensions
Flange Height
4.49 in
Flange Width
4.49 in
Minimum Wire Size
313 kcmil
Maximum Wire Size
777 kcmil
Overall Length
10.52 in
Overall Width
4.49 in
Details
Housing Color
Red
Standards
UL Recognized
Minimum Operating Temperature
-76 Degrees F
NEMA Enclosure Rating
3R
Mounting Style
Through Hole Mounting
Gender
Female
Maximum Operating Temperature
275 Degrees F
Flange Shape
Square
Connection Orientation
Straight
Item
Single Pole Receptacle
Housing Material
Thermoplastic Elastomer
Resistance Properties
Corrosion Resistant
End Type
45 Degrees Clevis Pin
Series
49
Terminal Connection Type
Two-Hole Bus Bar
Current Rating
1,135 A
Voltage Rating
1000V AC, 1000V DC
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color Red, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
