  11. Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

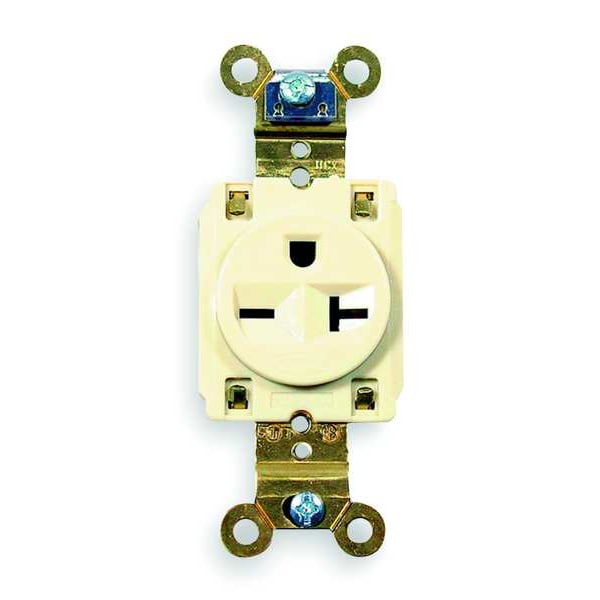

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5461I - main

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5461I

  • Zoro # G1839214

product price: $32.13
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5461I
Zoro #
G1839214
UPC #
783585013961
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Face Plate Width
1.7 in
Overall Depth
1.2 in
Face Plate Height
1.9 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Diameter
1.4 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
HP
2 hp
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
6-20R
Tamper Resistant
No
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Sub-Category
Single Receptacles
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Material
Nylon
Application Environment
Harsh and Heavy Use Industrial
Voltage
250VAC
Outlet Type - Plugs and Receptacles
Single
Power Indicator
No
Outlet Type
Single
Type
Single
AFCI
No
Connection Orientation
Straight
Includes
Grounding Clip, Mounting Hardware
Contact Material
Brass
Shrouded
No
NEMA Enclosure Rating
1
Surge Protection
No
Cover Type
No Cover
Housing Material
Nylon
Includes Mounting Hardware
Yes
Horsepower Rating
2 hp
UL 94 Flammability Rating
V-0, V-2
Grade
Federal Specification
For Location
Indoor
Market
Industrial
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Standard
NEMA
Receptacle Grade
Heavy Duty Spec Grade
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.037" (.9) Brass
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Device Color
Ivory
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., Top: UL 94V-2, Base: UL 94V-0
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Top Material
Nylon
Auto Ground Clip Material
Stainless Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Finder Groove
Mounting Strap Material
.050" (1.3) Brass
Base Material
Reinforced PET
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Other Available Colors
Brown, Ivory
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Horsepower
2
Rating
20A, 250V
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Single
Face Shape
Traditional
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
5000 W
Nema Rating
6-20R
Application
Extra Heavy Duty
Series
Extra Heavy Duty
Material - Mounting Hardware
Screw Mounting
Style
Finder Groove Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
