Shop MOLEX

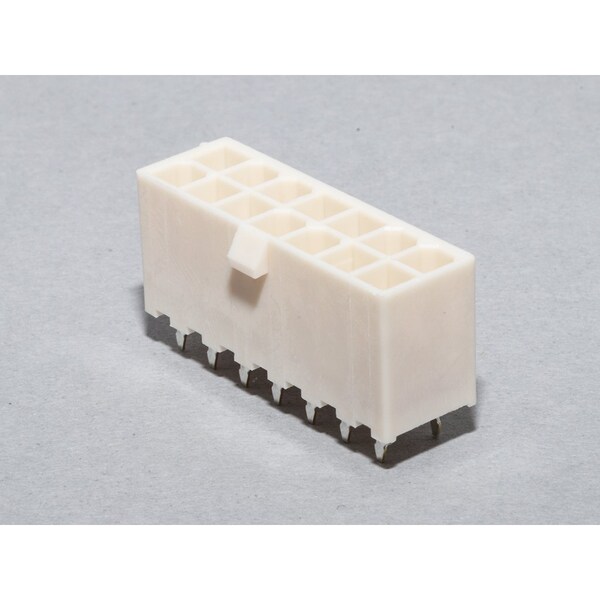

New Mini Fit Header Assy 14Ckt

  • Mfr # 39-28-8140

  • Zoro # G4030141

product price:
$
3.15
/ea
Sold in multiples of 35 for $110.25

Key Features

UL
E29179
Temperature Range - Operating
-40° to +105°C
Plating min - Termination
0.889µm
Current - Maximum per Contact
9.0A
Material - Resin
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
39-28-8140
Zoro #
G4030141
UPC #
-
Country of Origin
Mexico
UL
E29179
Temperature Range - Operating
-40° to +105°C
Plating min - Termination
0.889µm
Current - Maximum per Contact
9.0A
Material - Resin
Nylon
Pitch - Termination Interface
4.20mm
CSA
LR19980
Lock to Mating Part
Yes
Circuits (maximum)
14
Process Temperature max. C
240
Voltage - Maximum
600V
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Circuits (Loaded)
14
Color - Resin
Natural
Material - Metal
Brass
Duration at Max. Process Temperature (seconds)
5
Material - Plating Mating
Tin
Number of Rows
2
Material - Plating Termination
Tin
Shrouded
Fully
Termination Interface: Style
Through Hole
Orientation
Vertical
Plating min - Mating
0.889µm
Max. Cycles at Max. Process Temperature
1
Pitch - Mating Interface
4.20mm
PCB Locator
Yes
Durability (mating cycles max)
30
Flammability
94V-0
