  11. Straight Blade Receptacle, 7-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

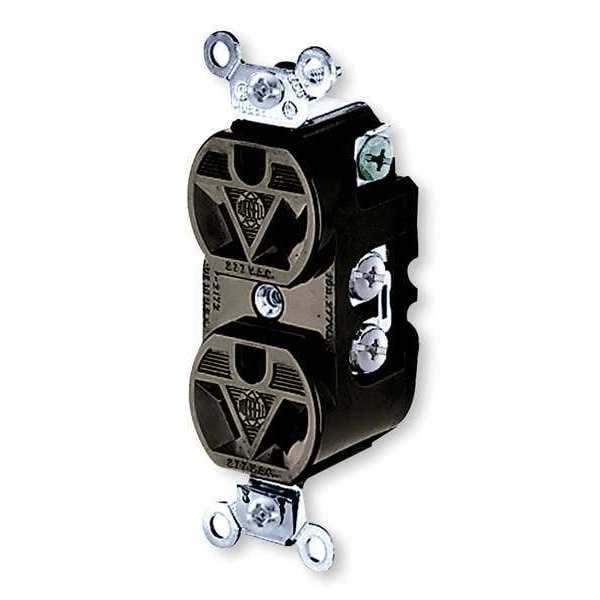

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 7-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5302 - main

Straight Blade Receptacle, 7-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5302

  • Zoro # G3277592

product price: $32.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
7-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5302
Zoro #
G3277592
UPC #
783585014241
Country of Origin
United States

Dimensions

Height
1.19 in
Length
3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Width
1.33 in
Dimensions
3.28 in x 1.33 in x 1.19 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Face Plate Width
1.3 in
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
7-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Color
Brown
Sub-Category
Duplex Receptacles
Surge Suppression
No
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Material
Thermoplastic
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Industrial
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
7-15R
Voltage
277VAC
NEMA Configuration
7-15
Mounting Type
Flush
HP
2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Number of Gangs
1
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired
Amperage
15 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Type
Standard Duplex
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Application
Heavy Duty
Wattage
4155 W
Weight
0.25 lb
UPC
783585000000
Number Of Wires
3-Wire
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Maximum Horsepower
2
Series
Extra Heavy Duty
Mounting Hardware Material
Screw Mounting
Nema Rating
7-15R
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Horsepower Rating
2 hp
Includes Mounting Hardware
Yes
Contact Material
Bronze
Polarized
Yes
GFCI
No
Shrouded
No
Grade
Federal Specification
Connection Orientation
Straight
Includes
Grounding Clip, Mating Plug, Mounting Hardware
Surge Protection
No
Housing Material
Thermoplastic
Market
Commercial, Industrial
Cover Type
No Cover
AFCI
No
For Location
Indoor
Top Material
Phenolic
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Poles and Wires
2 Pole, 3-Wire Grounding
Receptacle Grade
Compact Spec Grade
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Face Shape
Traditional
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screw Material
Steel-Zinc Plated
Receptacle Style
Duplex
Standard
NEMA
Auto Ground Clip Material
Stainless Steel
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V-0, UL 94 V2.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Finder Groove
Rating
15A, 277V
Horsepower
2
Mounting Strap Material
.050" (1.3) Steel -plated
Power Contacts Material
.031" (.8) Phosphor Bronze
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Brown
Base Material
Phenolic
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
2
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 7-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706, Voltage Rating 277V AC, Wire Connection Type Screw Terminals
