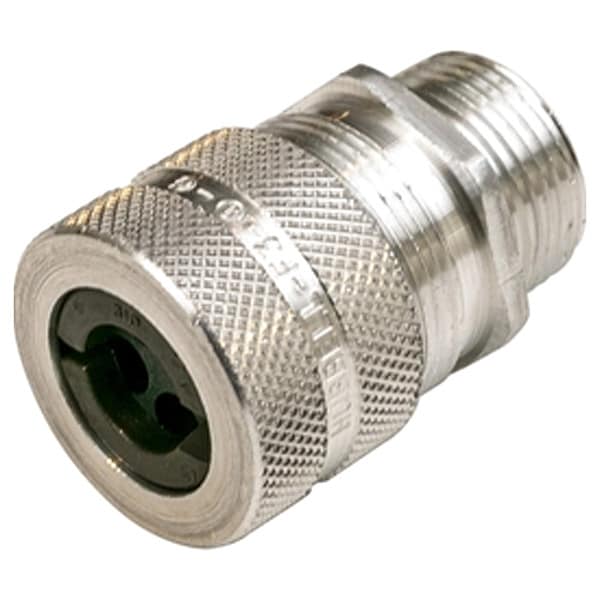

Hubbell Wiring Device-Kellems Straight Multi-Cable Grip, 1-1/2 in L MHC1032 - main

Straight Multi-Cable Grip, 1-1/2 in L

  • Mfr # MHC1032

  • Zoro # G010473297

product price: $17.75
/ea

Key Features

For Use With
Cord
Hub Size
3/4 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Standards
UL Listed
Environmental Rating
Hazardous Location
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MHC1032
Zoro #
G010473297
UPC #
783585686226
Country of Origin
United States

Dimensions

Hub Size
3/4 in
Cord Dia. Range
0.23 in to 0.29 in
Form Size
F2
Overall Length
2 1/16 in
Length - Box to End of Connector
1 1/2 in
Length - External Strain Relief
2 1/16 in
Compatible Conduit Trade Size
3/4 in

Details

Item
Straight Multi-Cable Grip
For Use With
Cord
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Standards
UL Listed
Environmental Rating
Hazardous Location
Maximum Operating Temperature
225 Degrees F
Number of Cords
4
Insulated
No
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
Aluminum
Hazardous Location Rating
Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1
For Minimum Cable OD
0.23 in
Box Connection
3/4 in MNPT
Bushing Material
Neoprene
For Maximum Cable OD
0.29 in
Minimum Operating Temperature
-30 Degrees F
Connection Orientation
Straight
IP Rating
IP 66
Body Material
Aluminum
Collar Material
Aluminum
Grommet Material
Neoprene
Grommet Color Code
No Code
Thread Gender
Male
Liquid Tight
Yes
Indoor/Outdoor Usage
Indoor/Outdoor
Body Color
Silver
Resistance Properties
UV Resistant
Gripper Material
Nylon
Hazardous Location Rating - Europe
Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
Thread Type
NPT

Description

Straight Multi-Cable Grip, Cord Dia. Range 0.23 in to 0.29 in, Box Connection 3/4 in MNPT, External Strain Relief Material Aluminum, Number of Cords 4, Strain Relief Type No External Strain Relief, External Strain Relief Length 2 1/16 in, Length - Box to End of Connector 1 1/2 in, Insulated No, Standards UL Listed, Hazardous Location Rating Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1
