Shop HUBBELL WIRING DEVICE-KELLEMS

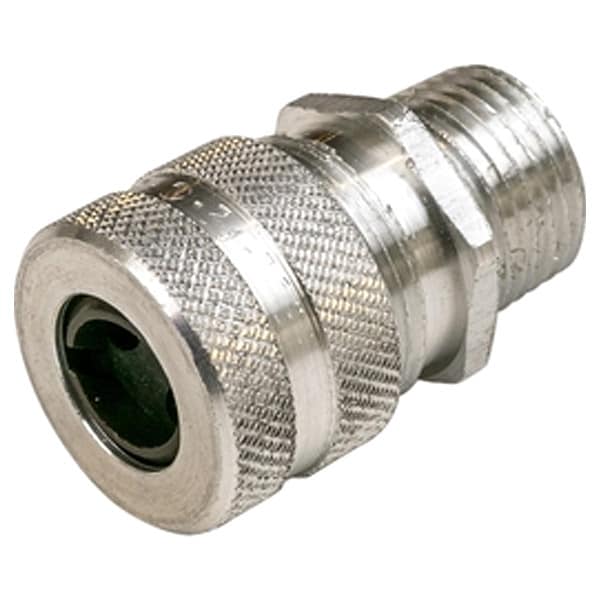

Straight Multi-Cable Grip, 1-1/8 in L

  • Mfr # MHC1022

  • Zoro # G110473296

product price:
$
13.19
/ea

Key Features

For Use With
Cord
Hub Size
1/2 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Standards
UL Listed
Connection Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MHC1022
Zoro #
G110473296
UPC #
783585686219
Country of Origin
United States
Item
Straight Multi-Cable Grip
For Use With
Cord
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Standards
UL Listed
Connection Orientation
Straight
Box Connection
1/2 in MNPT
Material - External Strain Relief
Aluminum
Number of Cords
2
Hazardous Location Rating
Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1
Environmental Rating
Hazardous Location
IP Rating
IP 66
Body Material
Aluminum
Maximum Operating Temperature
225 Degrees F
Insulated
No
For Maximum Cable OD
0.29 in
Minimum Operating Temperature
-30 Degrees F
For Minimum Cable OD
0.23 in
Bushing Material
Neoprene
Strain Relief Type
No External Strain Relief
Gripper Material
Nylon
Resistance Properties
UV Resistant
Indoor/Outdoor Usage
Indoor/Outdoor
Collar Material
Aluminum
Thread Type
NPT
Grommet Material
Neoprene
Liquid Tight
Yes
Thread Gender
Male
Hazardous Location Rating - Europe
Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
Body Color
Silver
Grommet Color Code
No Code

Description

Straight Multi-Cable Grip, Cord Dia. Range 0.23 in to 0.29 in, Box Connection 1/2 in MNPT, External Strain Relief Material Aluminum, Number of Cords 2, Strain Relief Type No External Strain Relief, External Strain Relief Length 1 21/32 in, Length - Box to End of Connector 1 1/8 in, Insulated No, Standards UL Listed, Hazardous Location Rating Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1
