Shop RACO

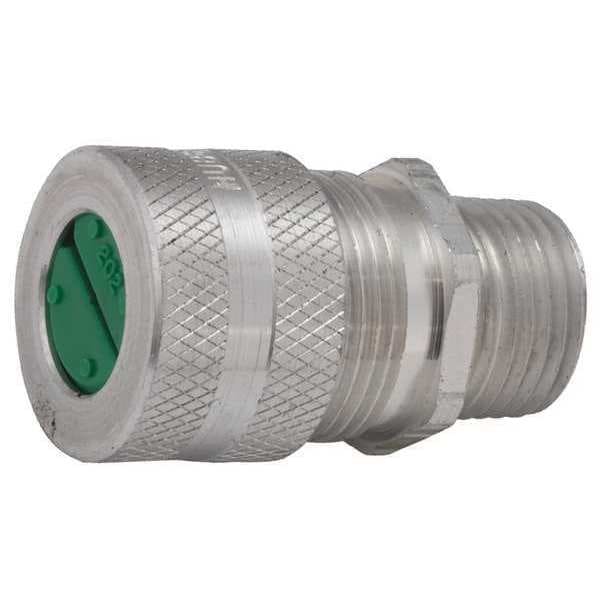

Cord Connector, Silver, 2-3/64" L, Aluminum

  • Mfr # 4803-5

  • Zoro # G5490287

product price:
$
15.95
/ea

Key Features

Hub Size
3/4 in
Material
Aluminum
Color
Silver
Length
2-3/64"
Standards
UL 514B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4803-5
Zoro #
G5490287
UPC #
050169480359
Country of Origin
China

Dimensions

Hub Size
3/4 in
Length
2-3/64"
Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
9/16 in
Conduit Size
3/4"
Cord Dia. Range
0.50 in to 0.63 in
Compatible Conduit Trade Size
3/4 in
Form Size
F2
Thread Size
3/4 in
Each - Width
1.130 in
Trade Size
3/4 in
Dimensions
2.05 in x 1.13 in x 1.13 in
Size
2.05 in x 1.13 in x 1.13 in
Width
1.130 in
Height
1.13 in

Details

Item
Enhanced Rating Cord Connector
Material
Aluminum
Color
Silver
Standards
UL 514B
Style - Connector
Straight
Insulated
No
Strain Relief Type
No External Strain Relief
Gland Color Code
Brown
Connector Type
Straight
Body Color - Cord Connector
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - External Strain Relief
No External Strain Relief
Number of Cords
1
Material - Cord Connector
Aluminum
Box Connection
3/4 in MNPT
Item - Cord Connector
Enhanced Rating Cord Connector
Grommet Material
Neoprene
Body Material
Aluminum
Compatible Conduit Type
Liquid Tight Cord Connector
Environmental Rating
Liquid Tight
Liquid Tight
Yes
Connection Orientation
Straight
Grommet Color Code
Brown
For Maximum Cable OD
0.625 in
Collar Material
Aluminum
For Minimum Cable OD
0.5 in
Thread Type
NPT
Body Color
Silver
Fitting Type
Connectors
Conduit Type
Liquidtight
Industry Standard(s)
UL 514B
Cable Range
0.500 - 0.625 in
Certified Listed
UL Listed;CSA Certified
Standard
UL 514B
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Environmental Conditions
Wet Location
Product Type
Commercial Fittings
Configuration
Straight
Color Code
Brown
Features
Aluminum construction provides a corrosion resistant installation; Innovative GOTHCA® ring incorporates a split hinge design to prevent friction and to provide strain relief; Neoprene grommet; Knurled compression nut allows the fittings to be hand tightened to UL requirements; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Brown, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 9/16 in, Insulated No, Standards UL 514B
