  11. Style Line Decorator Series Specification Grade Switch

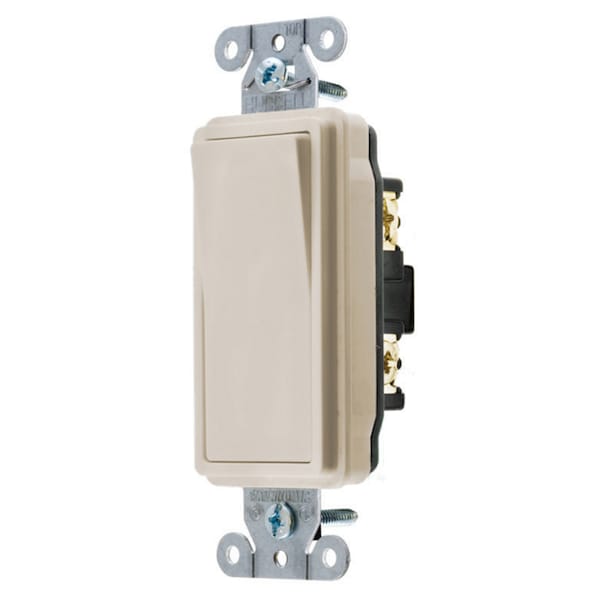

Hubbell Wiring Device-Kellems Style Line Decorator Series Specification Grade Switch DS120LA - main

Style Line Decorator Series Specification Grade Switch

  • Mfr # DS120LA

  • Zoro # G900701301

product price: $23.99
/ea

Key Features

Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Style
Single Pole
Type
Rocker/Decorator
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS120LA
Zoro #
G900701301
UPC #
783585151328
Country of Origin
China

Dimensions

Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Style Line Decorator Switch
Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Style
Single Pole
Type
Rocker/Decorator
Series
General Purpose
Connectivity
Back and Side Wired
Carton Quantity
10
Current Rating
20 A
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating
120-277 VAC
Temp. Rise
30°C maximum at rated current
Amperage
20 A
Rocker Color
Light Almond
Switch Handle Positions
2
Max. Continuous Current
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Grade
Decorator Series
Max. Working Voltage
277V AC
Wiring Style
Back and Side Wired
Listing and Certifications
UL Listed and CSA Certified
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Product Type
Toggle-switches
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Single Pole, 20A 120/277V AC, Back and SideWired, Light Almond
