  6. Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Black

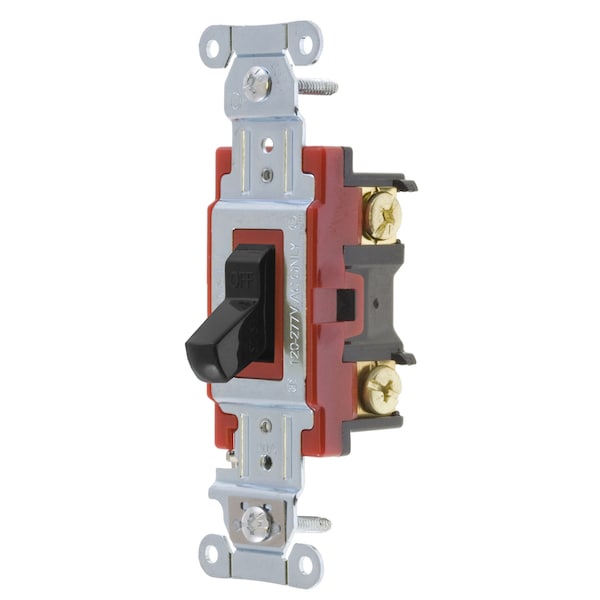

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Black 1222BK - main

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Black

  • Mfr # 1222BK

  • Zoro # G700701365

product price:  $15.15
/ea

Key Features

Switch Type
Double Pole
Color
Black
Height
1.83 in
Style
Double Pole
Length
4.18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1222BK
Zoro #
G700701365
UPC #
783585181431
Country of Origin
China

Dimensions

Height
1.83 in
Length
4.18 in
Width
1.49 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Switch Type
Double Pole
Color
Black
Style
Double Pole
Voltage
120/277V AC
Type
Toggle
Carton Quantity
10
Amperage
20 A
Voltage Rating
120-277 VAC
Temp. Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Heavy Duty
Application
Back and Side Wired
Current Rating
20 A
Connectivity
Back and Side Wired
Number Of Poles
Double Pole
Max. Continuous Current
20A
Toggle Color
Black
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Flammability
UL 94V-2
Product Type
Toggle-switches
Max. Working Voltage
277V AC
Wiring Style
Back and Side Wired
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Switch Handle Positions
2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Switch Grade
Hubbell-Pro Series
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
20 A
Voltage Rating Description
120-277 VAC

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, Hubbell-PRO Series, Toggle Switches, General Purpose AC, Double Pole, 20A120/277V AC, Back and Side Wired, Black
