  6. Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Black

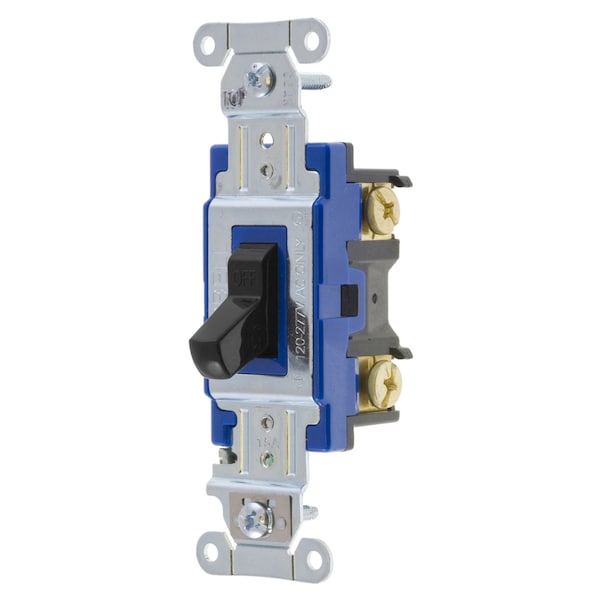

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Black 1201BK - main

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Black

  • Mfr # 1201BK

  • Zoro # G100701064

product price:  $7.55
/ea

Key Features

Switch Type
Single Pole
Color
Black
Voltage
120/277V AC
Height
1.83 in
Length
4.18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1201BK
Zoro #
G100701064
UPC #
783585181301
Country of Origin
China

Dimensions

Height
1.83 in
Length
4.18 in
Width
1.49 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Switch Type
Single Pole
Color
Black
Voltage
120/277V AC
Type
Toggle
Style
Single Pole
Carton Quantity
10
Application
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Series
Heavy Duty
Current Rating
15 A
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Amperage
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Back and Side Wired
Max. Continuous Current
15A
Overload
Minimum 4.8 times rated current for 100 cycles
Toggle Color
Black
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Switch Grade
Hubbell-Pro Series
Switch Handle Positions
2
Listing and Certifications
UL Listed and CSA Certified
Temperature Rise
30°C maximum at rated current
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Wiring Style
Back and Side Wired
Product Type
Toggle-switches
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Amperage Rating
15 A
Voltage Rating Description
120-277 VAC
Current / Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, Hubbell-PRO Series, Toggle Switches, General Purpose AC, Single Pole, 15A120/277V AC, Back and Side Wired, Black
