  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, White

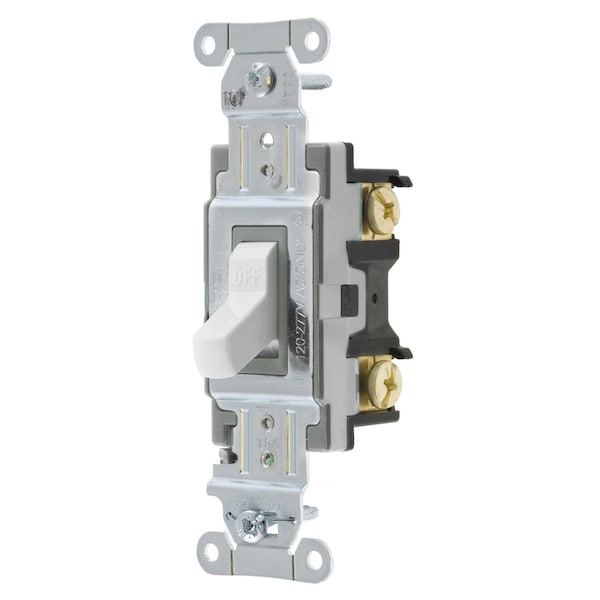

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, White CSB215W - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, White

  • Mfr # CSB215W

  • Zoro # G700701372

product price: $10.93
/ea

Key Features

Switch Type
Double Pole
Color
White
Width
1.49 in
Voltage
120/277V AC
Type
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB215W
Zoro #
G700701372
UPC #
783585153858
Country of Origin
China

Dimensions

Width
1.49 in
Height
1.83 in
Length
4.18 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Double Pole Commercial Toggle Switch
Switch Type
Double Pole
Color
White
Voltage
120/277V AC
Type
Toggle
Style
Double Pole
Material
Nylon
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Carton Quantity
10
Connectivity
Back and Side Wired
Number Of Poles
Double Pole
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Temperature Rise
30°C maximum at rated current
Toggle Color
White
Voltage Rating
120-277 VAC
Product Type
Toggle-switches
Switch Handle Positions
2
Switch Grade
Specification Grade
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Temp. Rise
30°C maximum at rated current
Amperage Rating
15 A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
15A
Series
General Purpose
Wiring Style
Back and Side Wired
Max. Working Voltage
277V AC
Amperage
15 A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Item Type
Double Pole Commercial Toggle Switch
Current / Amperage Rating
15 A
Flammability
UL 94V-2
Current Rating
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and SideWired, White
