Shop HUBBELL WIRING DEVICE-KELLEMS

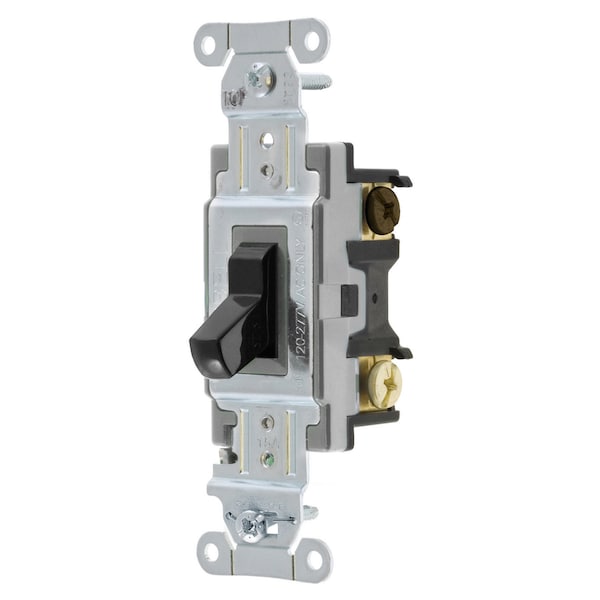

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, Black

  • Mfr # CSB415BK

  • Zoro # G100701262

product price:
$
21.15
/ea

Key Features

Switch Type
Four Way
Color
Black
Type
Toggle
Length
4.18 in
Style
Four Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB415BK
Zoro #
G100701262
UPC #
783585154640
Country of Origin
China

Dimensions

Length
4.18 in
Width
1.49 in
Height
1.83 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Four Way Commercial Toggle Switch
Switch Type
Four Way
Color
Black
Type
Toggle
Style
Four Way
Voltage
120/277V AC
Amperage
15 A
Temp. Rise
30°C maximum at rated current
Series
General Purpose
Current Rating
15 A
Carton Quantity
10
Voltage Rating
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Back and Side Wired
Number Of Poles
Double Pole
Action
DPDT
Material
Nylon
Switch Grade
Specification Grade
Switch Handle Positions
2
Max. Working Voltage
277V AC
Product Type
Toggle-switches
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Max. Continuous Current
15A
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Wiring Style
Back and Side Wired
Toggle Color
Black
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
15 A
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Four Way Commercial Toggle Switch
Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Four Way, 15A 120/277V AC, Back and SideWired, Black
