  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Brown

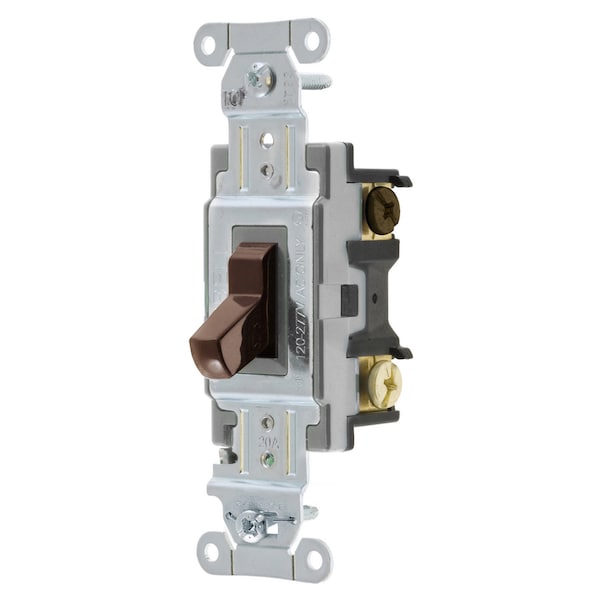

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Brown CSB420 - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Brown

  • Mfr # CSB420

  • Zoro # G400701634

product price: $20.15
/ea

Key Features

Switch Type
Four Way
Color
Brown
Type
Toggle
Height
1.83 in
Voltage
120/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB420
Zoro #
G400701634
UPC #
783585154305
Country of Origin
China

Dimensions

Height
1.83 in
Width
1.49 in
Length
4.18 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Four Way Commercial Toggle Switch
Switch Type
Four Way
Color
Brown
Type
Toggle
Voltage
120/277V AC
Style
Four Way
Number Of Poles
Double Pole
Connectivity
Back and Side Wired
Current Rating
20 A
Action
DPDT
Amperage
20 A
Series
General Purpose
Temp. Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Voltage Rating
120-277 VAC
Material
Nylon
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Working Voltage
277V AC
Switch Handle Positions
2
Temperature Rise
30°C maximum at rated current
Product Type
Toggle-switches
Wiring Style
Back and Side Wired
Max. Continuous Current
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Brown
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Specification Grade
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Item Type
Four Way Commercial Toggle Switch

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Four Way, 20A 120/277V AC, Back and SideWired, Brown
