  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, BlackToggle

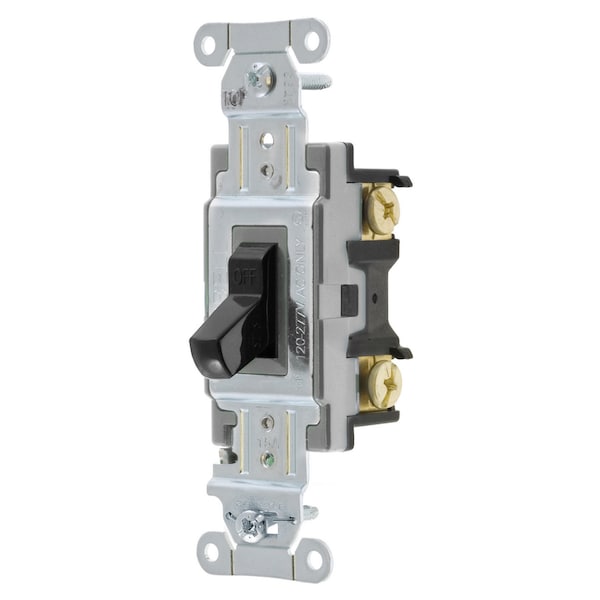

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, BlackToggle CS115BK - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, BlackToggle

  • Mfr # CS115BK

  • Zoro # G200701797

product price: $4.15
/ea
Sold in multiples of 2 for $8.30

Key Features

Color
Black
Type
Toggle
Style
Single Pole
Length
4.18 in
Height
1.83 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS115BK
Zoro #
G200701797
UPC #
783585189161
Country of Origin
China

Dimensions

Length
4.18 in
Height
1.83 in
Width
1.49 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Toggle Switch
Color
Black
Type
Toggle
Style
Single Pole
Amperage
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Current Rating
15 A
Series
General Purpose
Temp. Rise
30°C maximum at rated current
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Connectivity
Side Wired Only
Material
Nylon
Contacts
Silver Alloy
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Material
Nylon
Max. Continuous Current
15A
Auto Grounding Mounting Bridge
Zinc Plated Steel
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Base Material
Thermoplastic, Black
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Gray
Terminal Screws
Brass
Flammability
UL 94V-2
Toggle Color
Black
Ground Screw
Brass (Green)
Current / Amperage Rating
15 A
Industry Standard(s)
UL Listed
Item Type
Single Pole Toggle Switch
Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired,Black
