  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, Light Almond Toggle

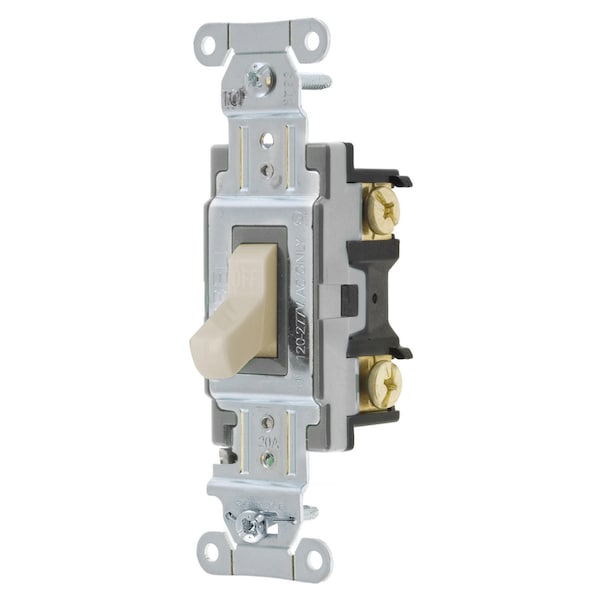

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, Light Almond Toggle CS120LA - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, Light Almond Toggle

  • Mfr # CS120LA

  • Zoro # G100701712

product price: $6.65
/ea
Sold in multiples of 2 for $13.30

Key Features

Color
Light Almond
Type
Toggle
Width
1.49 in
Style
Single Pole
Height
1.83 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS120LA
Zoro #
G100701712
UPC #
783585151229
Country of Origin
China

Dimensions

Width
1.49 in
Height
1.83 in
Length
4.18 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Toggle Switch
Color
Light Almond
Type
Toggle
Style
Single Pole
Material
Nylon
Series
General Purpose
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Working Voltage
277V AC
Carton Quantity
10
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Voltage Rating
120-277 VAC
Connectivity
Side Wired Only
Current / Amperage Rating
20 A
Temp. Rise
30°C maximum at rated current
Toggle Material
Nylon
Amperage
20 A
Contacts
Silver Alloy
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Item Type
Single Pole Toggle Switch
Temperature Rise
30°C maximum at rated current
Amperage Rating
20 A
Current Rating
20 A
Toggle Color
Light Almond
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Base Material
Thermoplastic, Black
Max. Continuous Current
20A
Terminal Screws
Brass
Temperature Rise - Max.
30°C maximum at rated current
Ground Screw
Brass (Green)
Number Of Poles
Single Pole
Auto Grounding Mounting Bridge
Zinc Plated Steel
Flammability
UL 94V-2
Industry Standard(s)
UL Listed
Top Material
Thermoplastic, Gray

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired,Light Almond
